echarts希望两个div上下分开放置,但不知道为什么目前两个图表互相重叠,求解!

<!DOCTYPE html>
<html style="height: 100%">
    <head>
        <meta charset="utf-8">
    </head>
    <body style="height: 100%; margin: 0">
        <script type="text/javascript" src="https://cdn.jsdelivr.net/npm/jquery@2.2.4/dist/jquery.min.js"></script>
        <script type="text/javascript" src="https://cdn.jsdelivr.net/npm/echarts@5/dist/echarts.min.js"></script>




        <div id="main1" style="width: 600px;height:400px;"></div>
        <script type="text/javascript">
        var dom = document.getElementById("main1");
        var myChart = echarts.init(dom);
        var app = {};

        var option;

        var ROOT_PATH = 'https://cdn.jsdelivr.net/gh/apache/echarts-website@asf-site/examples';


        $.getJSON(ROOT_PATH + '/data/asset/data/house-price-area2.json', function (data) {

            var option = {
                title: {
                    text: 'Dispersion of house price based on the area',
                    left: 'center',
                    top: 0
                },
                visualMap: {
                    min: 15202,
                    max: 159980,
                    dimension: 1,
                    orient: 'vertical',
                    right: 10,
                    top: 'center',
                    text: ['HIGH', 'LOW'],
                    calculable: true,
                    inRange: {
                        color: ['#f2c31a', '#24b7f2']
                    }
                },
                tooltip: {
                    trigger: 'item',
                    axisPointer: {
                        type: 'cross'
                    }
                },
                xAxis: [{
                    type: 'value'
                }],
                yAxis: [{
                    type: 'value'
                }],
                series: [{
                    name: 'price-area',
                    type: 'scatter',
                    symbolSize: 5,
                    // itemStyle: {
                    //     normal: {
                    //         borderWidth: 0.2,
                    //         borderColor: '#fff'
                    //     }
                    // },
                    data: data
                }]
            };

            myChart.setOption(option);
        });

        if (option && typeof option === 'object') {
            myChart.setOption(option);
        }

        </script>


    <div id="main2" style="width: 600px;height:400px;"></div>
    <script type="text/javascript">
        // 基于准备好的dom,初始化echarts实例
        var myChart = echarts.init(document.getElementById('main2'));
        var myChart = echarts.init(dom);
        var app = {};

        var option;

        var indices = {
            name: 0,
            group: 1,
            id: 16
        };
        var schema = [
            {name: 'name', index: 0},
            {name: 'group', index: 1},
            {name: 'protein', index: 2},
            {name: 'calcium', index: 3},
            {name: 'sodium', index: 4},
            {name: 'fiber', index: 5},
            {name: 'vitaminc', index: 6},
            {name: 'potassium', index: 7},
            {name: 'carbohydrate', index: 8},
            {name: 'sugars', index: 9},
            {name: 'fat', index: 10},
            {name: 'water', index: 11},
            {name: 'calories', index: 12},
            {name: 'saturated', index: 13},
            {name: 'monounsat', index: 14},
            {name: 'polyunsat', index: 15},
            {name: 'id', index: 16}
        ];

        var fieldIndices = schema.reduce(function (obj, item) {
            obj[item.name] = item.index;
            return obj;
        }, {});

        var groupCategories = [];
        var groupColors = [];
        var data;

        // zlevel 为 1 的层开启尾迹特效
        myChart.getZr().configLayer(1, {
            motionBlur: 0.5
        });

         $.get(ROOT_PATH + '/data/asset/data/nutrients.json', function (originData) {
            data = normalizeData(originData).slice(0, 1000);

            myChart.setOption(option = getOption(data));
        });


        function normalizeData(originData) {
            var groupMap = {};
            originData.forEach(function (row) {
                var groupName = row[indices.group];
                if (!groupMap.hasOwnProperty(groupName)) {
                    groupMap[groupName] = 1;
                }
            });

            originData.forEach(function (row) {
                row.forEach(function (item, index) {
                    if (index !== indices.name
                        && index !== indices.group
                        && index !== indices.id
                    ) {
                        // Convert null to zero, as all of them under unit "g".
                        row[index] = parseFloat(item) || 0;
                    }
                });
            });

            for (var groupName in groupMap) {
                if (groupMap.hasOwnProperty(groupName)) {
                    groupCategories.push(groupName);
                }
            }
            var hStep = Math.round(300 / (groupCategories.length - 1));
            for (var i = 0; i < groupCategories.length; i++) {
                groupColors.push(echarts.color.modifyHSL('#5A94DF', hStep * i));
            }

            return originData;
        }

        function getOption(data) {
            return {
                xAxis: {
                    name: 'protein',
                    splitLine: {show: false},
                },
                yAxis: {
                    name: 'calcium',
                    splitLine: {show: false},
                },
                visualMap: [{
                    show: false,
                    type: 'piecewise',
                    categories: groupCategories,
                    dimension: 2,
                    inRange: {
                        color: groupColors
                    },
                    outOfRange: {
                        color: ['#ccc']
                    },
                    top: 20,
                    textStyle: {
                        color: '#fff'
                    },
                    realtime: false
                }, {
                    show: false,
                    dimension: 3,
                    max: 100,
                    inRange: {
                        colorLightness: [0.15, 0.6]
                    }
                }],
                series: [
                    {
                        zlevel: 1,
                        name: 'nutrients',
                        type: 'scatter',
                        data: data.map(function (item, idx) {
                            return [item[2], item[3], item[1], idx];
                        }),
                        animationThreshold: 5000,
                        progressiveThreshold: 5000
                    }
                ],
                animationEasingUpdate: 'cubicInOut',
                animationDurationUpdate: 2000
            };
        }

        var fieldNames = schema.map(function (item) {
            return item.name;
        }).slice(2);

        app.config = {
            xAxis: 'protein',
            yAxis: 'calcium',
            onChange: function () {
                if (data) {
                    myChart.setOption({
                        xAxis: {
                            name: app.config.xAxis
                        },
                        yAxis: {
                            name: app.config.yAxis
                        },
                        series: {
                            data: data.map(function (item, idx) {
                                return [
                                    item[fieldIndices[app.config.xAxis]],
                                    item[fieldIndices[app.config.yAxis]],
                                    item[1],
                                    idx
                                ];
                            })
                        }
                    });
                }
            }
        };

        app.configParameters = {
            xAxis: {
                options: fieldNames
            },
            yAxis: {
                options: fieldNames
            }
        };

        </script>
    </body>
</html>
  • 点赞
  • 写回答
  • 关注问题
  • 收藏
  • 复制链接分享
  • 邀请回答

2条回答

  • hu071700 AllPromise 1月前

    你这个第二个echart的数据赋值到第一个div上面去了,变量不要用一样的

    1.你把84行 var myChart = echarts.init(document.getElementById('main2'));改成 var myChart2 = echarts.init(document.getElementById('main2'));
    2.删除85行 var myChart = echarts.init(dom);

    3.132行 myChart.setOption(option = getOption(data));改成myChart2.setOption(option = getOption(data));

    点赞 1 评论 复制链接分享
  • wanmeikakaxi wanmeikakaxi 1月前

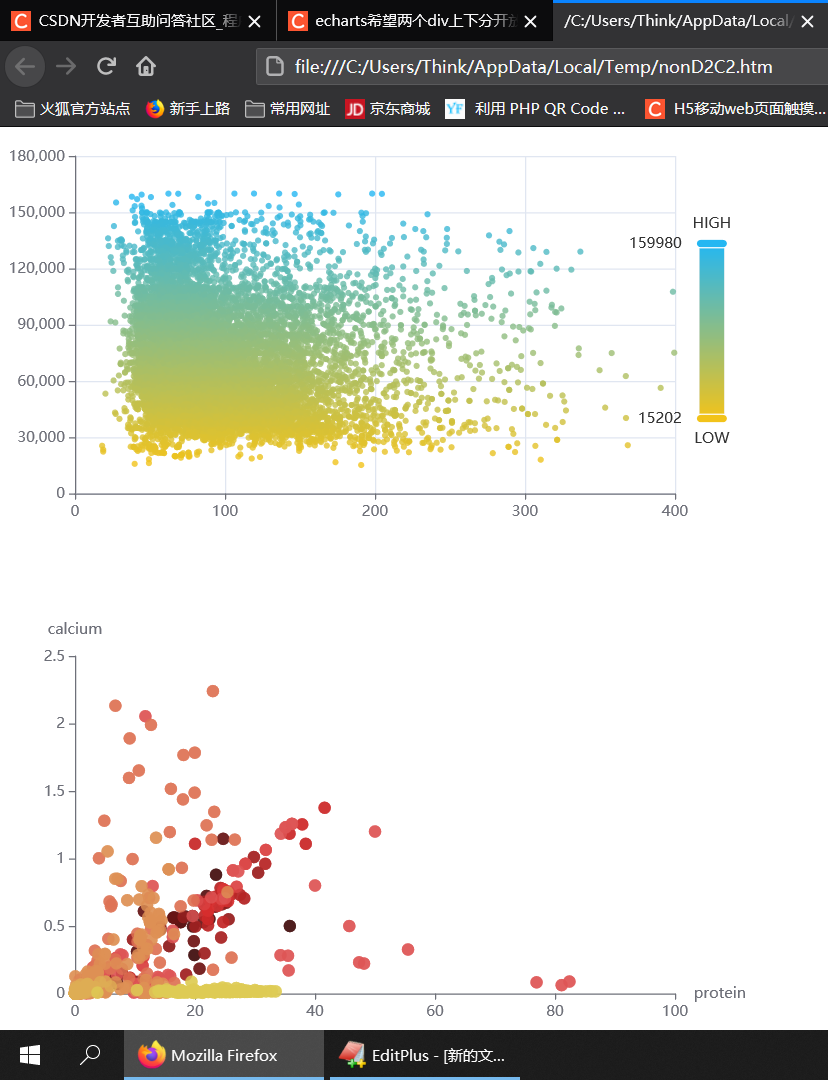

    截图

    代码

    <!DOCTYPE html>


    <html style="height: 100%">


        <head>


            <meta charset="utf-8">


        </head>


        <body style="height: 100%; margin: 0">


            <script type="text/javascript" src="https://cdn.jsdelivr.net/npm/jquery@2.2.4/dist/jquery.min.js"></script>


            <script type="text/javascript" src="https://cdn.jsdelivr.net/npm/echarts@5/dist/echarts.min.js"></script>














            <div id="main1" style="width: 600px;height:400px;"></div>
    		    <div id="main2" style="width: 600px;height:400px;"></div>


            <script type="text/javascript">


    function main1(){
            var dom = document.getElementById("main1");


            var myChart = echarts.init(dom);


            var app = {};





            var option;





            var ROOT_PATH = 'https://cdn.jsdelivr.net/gh/apache/echarts-website@asf-site/examples';








            $.getJSON(ROOT_PATH + '/data/asset/data/house-price-area2.json', function (data) {





                var option = {


                    title: {


                        text: 'Dispersion of house price based on the area',


                        left: 'center',


                        top: 0


                    },


                    visualMap: {


                        min: 15202,


                        max: 159980,


                        dimension: 1,


                        orient: 'vertical',


                        right: 10,


                        top: 'center',


                        text: ['HIGH', 'LOW'],


                        calculable: true,


                        inRange: {


                            color: ['#f2c31a', '#24b7f2']


                        }


                    },


                    tooltip: {


                        trigger: 'item',


                        axisPointer: {


                            type: 'cross'


                        }


                    },


                    xAxis: [{


                        type: 'value'


                    }],


                    yAxis: [{


                        type: 'value'


                    }],


                    series: [{


                        name: 'price-area',


                        type: 'scatter',


                        symbolSize: 5,


                        // itemStyle: {


                        //     normal: {


                        //         borderWidth: 0.2,


                        //         borderColor: '#fff'


                        //     }


                        // },


                        data: data


                    }]


                };





                myChart.setOption(option);


            });





            if (option && typeof option === 'object') {


                myChart.setOption(option);


            }




    }
    main1();

    function main2(){


            // 基于准备好的dom,初始化echarts实例


            // var dom = echarts.init(document.getElementById('main2'));
    		var dom = document.getElementById("main2");

            var myChart = echarts.init(dom);

            var app = {};



            var option;



            var indices = {

                name: 0,

                group: 1,

                id: 16

            };

            var schema = [

                {name: 'name', index: 0},

                {name: 'group', index: 1},

                {name: 'protein', index: 2},

                {name: 'calcium', index: 3},

                {name: 'sodium', index: 4},

                {name: 'fiber', index: 5},

                {name: 'vitaminc', index: 6},

                {name: 'potassium', index: 7},

                {name: 'carbohydrate', index: 8},

                {name: 'sugars', index: 9},

                {name: 'fat', index: 10},

                {name: 'water', index: 11},

                {name: 'calories', index: 12},

                {name: 'saturated', index: 13},

                {name: 'monounsat', index: 14},

                {name: 'polyunsat', index: 15},

                {name: 'id', index: 16}

            ];



            var fieldIndices = schema.reduce(function (obj, item) {

                obj[item.name] = item.index;

                return obj;

            }, {});



            var groupCategories = [];

            var groupColors = [];

            var data;



            // zlevel 为 1 的层开启尾迹特效

            myChart.getZr().configLayer(1, {

                motionBlur: 0.5

            });

            var ROOT_PATH = 'https://cdn.jsdelivr.net/gh/apache/echarts-website@asf-site/examples';

             $.get(ROOT_PATH + '/data/asset/data/nutrients.json', function (originData) {

                data = normalizeData(originData).slice(0, 1000);



                myChart.setOption(option = getOption(data));

            });





            function normalizeData(originData) {

                var groupMap = {};

                originData.forEach(function (row) {

                    var groupName = row[indices.group];

                    if (!groupMap.hasOwnProperty(groupName)) {

                        groupMap[groupName] = 1;

                    }

                });



                originData.forEach(function (row) {

                    row.forEach(function (item, index) {

                        if (index !== indices.name

                            && index !== indices.group

                            && index !== indices.id

                        ) {

                            // Convert null to zero, as all of them under unit "g".

                            row[index] = parseFloat(item) || 0;

                        }

                    });

                });



                for (var groupName in groupMap) {

                    if (groupMap.hasOwnProperty(groupName)) {

                        groupCategories.push(groupName);

                    }

                }

                var hStep = Math.round(300 / (groupCategories.length - 1));

                for (var i = 0; i < groupCategories.length; i++) {

                    groupColors.push(echarts.color.modifyHSL('#5A94DF', hStep * i));

                }



                return originData;

            }



            function getOption(data) {

                return {

                    xAxis: {

                        name: 'protein',

                        splitLine: {show: false},

                    },

                    yAxis: {

                        name: 'calcium',

                        splitLine: {show: false},

                    },

                    visualMap: [{

                        show: false,

                        type: 'piecewise',

                        categories: groupCategories,

                        dimension: 2,

                        inRange: {

                            color: groupColors

                        },

                        outOfRange: {

                            color: ['#ccc']

                        },

                        top: 20,

                        textStyle: {

                            color: '#fff'

                        },

                        realtime: false

                    }, {

                        show: false,

                        dimension: 3,

                        max: 100,

                        inRange: {

                            colorLightness: [0.15, 0.6]

                        }

                    }],

                    series: [

                        {

                            zlevel: 1,

                            name: 'nutrients',

                            type: 'scatter',

                            data: data.map(function (item, idx) {

                                return [item[2], item[3], item[1], idx];

                            }),

                            animationThreshold: 5000,

                            progressiveThreshold: 5000

                        }

                    ],

                    animationEasingUpdate: 'cubicInOut',

                    animationDurationUpdate: 2000

                };

            }



            var fieldNames = schema.map(function (item) {

                return item.name;

            }).slice(2);



            app.config = {

                xAxis: 'protein',

                yAxis: 'calcium',

                onChange: function () {

                    if (data) {

                        myChart.setOption({

                            xAxis: {

                                name: app.config.xAxis

                            },

                            yAxis: {

                                name: app.config.yAxis

                            },

                            series: {

                                data: data.map(function (item, idx) {

                                    return [

                                        item[fieldIndices[app.config.xAxis]],

                                        item[fieldIndices[app.config.yAxis]],

                                        item[1],

                                        idx

                                    ];

                                })

                            }

                        });

                    }

                }

            };



            app.configParameters = {

                xAxis: {

                    options: fieldNames

                },

                yAxis: {

                    options: fieldNames

                }

            };




    }
    main2();
            </script>


        </body>


    </html>
    点赞 1 评论 复制链接分享
