请教，这是用chatgpt写的CAD LISPD脚本，需求是画一个由双直线组成的矩形

Question

请教，这是用chatgpt写的CAD LISP脚本，需求是画一个由双直线组成的矩形

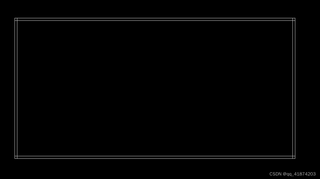

类似这样，

每次画的矩形大小都有我手动输入长宽。
现在用chatgpt写的脚本出现的是重合的双线，没有间隔7毫米

(defun c:QW (/ length width pt1 pt2 pt3 pt4 pt1-inner pt2-inner pt3-inner pt4-inner offset)
  (setq length (getreal "\n请输入矩形的长度: "))
  (setq width (getreal "\n请输入矩形的宽度: "))

  (setq pt1 (getpoint "\n输入矩形的左下角点: "))

  (setq offset 7) ; 间隔设置为7mm

  ;; 计算矩形的四个顶点
  (setq pt2 (list (car pt1) (+ (cadr pt1) width)))
  (setq pt3 (list (+ (car pt1) length) (+ (cadr pt1) width)))
  (setq pt4 (list (+ (car pt1) length) (cadr pt1)))

  ;; 绘制外边框的四条线
  (command "line" pt1 pt2 "")
  (command "line" pt2 pt3 "")
  (command "line" pt3 pt4 "")
  (command "line" pt4 pt1 "")

  ;; 计算内边框的四个顶点，向内偏移7mm
  (setq pt1-inner (list (+ (car pt1) offset) (+ (cadr pt1) offset)))
  (setq pt2-inner (list (+ (car pt2) offset) (+ (cadr pt2) offset)))
  (setq pt3-inner (list (+ (car pt3) (- offset)) (+ (cadr pt3) (- offset))))
  (setq pt4-inner (list (+ (car pt4) (- offset)) (+ (cadr pt4) offset)))

  ;; 绘制内边框的四条线
  (command "line" pt1-inner pt2-inner "")
  (command "line" pt2-inner pt3-inner "")
  (command "line" pt3-inner pt4-inner "")
  (command "line" pt4-inner pt1-inner "")

  (princ)
)

(princ "\n输入命令 'QW' 来绘制间隔7mm的双线矩形。")

Answer 1

你好，我改了一下代码其中一处错误，运行起来没问题，
但是原代码我这边测试没有重合而是内框左上角的点跑到外面去了
你可以看看是不是其他地方有问题还是
我先发一下代码，在评论里补一张图片（图片要一段时间才加载）
我用的参数是
100
100
0,0

(defun c:QW (/ length width pt1 pt2 pt3 pt4 pt1-inner pt2-inner pt3-inner pt4-inner offset)
  (setq length (getreal "\n请输入矩形的长度: "))
  (setq width (getreal "\n请输入矩形的宽度: "))

  (setq pt1 (getpoint "\n输入矩形的左下角点: "))

  (setq offset 7) ; 间隔设置为7mm

  ;; 计算矩形的四个顶点
  (setq pt2 (list (car pt1) (+ (cadr pt1) width)))
  (setq pt3 (list (+ (car pt1) length) (+ (cadr pt1) width)))
  (setq pt4 (list (+ (car pt1) length) (cadr pt1)))

  ;; 绘制外边框的四条线
  (command "line" pt1 pt2 "")
  (command "line" pt2 pt3 "")
  (command "line" pt3 pt4 "")
  (command "line" pt4 pt1 "")

  ;; 计算内边框的四个顶点，向内偏移7mm
  (setq pt1-inner (list (+ (car pt1) offset) (+ (cadr pt1) offset)))
  (setq pt2-inner (list (+ (car pt2) offset) (+ (cadr pt2) (- offset))))
  (setq pt3-inner (list (+ (car pt3) (- offset)) (+ (cadr pt3) (- offset))))
  (setq pt4-inner (list (+ (car pt4) (- offset)) (+ (cadr pt4) offset)))

  ;; 绘制内边框的四条线
  (command "line" pt1-inner pt2-inner "")
  (command "line" pt2-inner pt3-inner "")
  (command "line" pt3-inner pt4-inner "")
  (command "line" pt4-inner pt1-inner "")

  (princ)
)

(princ "\n输入命令 'QW' 来绘制间隔7mm的双线矩形。")
