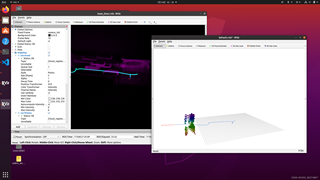

运行ego-planner-v2和fastlio时，发现无人机飞过一定的范围后，rviz不再显示无人机周围的障碍物点云，障碍物距离无人机的距离是可以形成点云图的距离，然后避障功能也无法实现，这是为什么？
以下是发布膨胀后点云图文件部分代码
#include "plan_env/grid_map.h"
void GridMap::initMap(ros::NodeHandle &nh)
{
node_ = nh;
/* get parameter */
// double x_size, y_size, z_size;
node_.param("grid_map/pose_type", mp_.pose_type_, 1); // 针对深度相机，一种是Pose，另一种采用odom
node_.param("grid_map/frame_id", mp_.frame_id_, string("world"));
node_.param("grid_map/odom_depth_timeout", mp_.odom_depth_timeout_, 1.0); // 深度和里程计更新时间
node_.param("grid_map/resolution", mp_.resolution_, -1.0); // 地图分辨率
/* 地图更新距离，当传入的点云数据超过范围，会被舍弃 */
node_.param("grid_map/local_update_range_x", mp_.local_update_range3d_(0), -1.0);
node_.param("grid_map/local_update_range_y", mp_.local_update_range3d_(1), -1.0);
node_.param("grid_map/local_update_range_z", mp_.local_update_range3d_(2), -1.0);
node_.param("grid_map/obstacles_inflation", mp_.obstacles_inflation_, -1.0); //点云膨胀距离或者点云碰撞
/* 设定虚拟天花板，*/
node_.param("grid_map/enable_virtual_wall", mp_.enable_virtual_walll_, false);
node_.param("grid_map/virtual_ceil", mp_.virtual_ceil_, -1.0);
node_.param("grid_map/virtual_ground", mp_.virtual_ground_, -1.0);
/* 相机内参 */
node_.param("grid_map/fx", mp_.fx_, -1.0);
node_.param("grid_map/fy", mp_.fy_, -1.0);
node_.param("grid_map/cx", mp_.cx_, -1.0);
node_.param("grid_map/cy", mp_.cy_, -1.0);
/* 使用深度图，深度滤波范围 */
node_.param("grid_map/use_depth_filter", mp_.use_depth_filter_, true);
node_.param("grid_map/depth_filter_tolerance", mp_.depth_filter_tolerance_, -1.0);
node_.param("grid_map/depth_filter_mindist", mp_.depth_filter_mindist_, 0.1);
node_.param("grid_map/depth_filter_margin", mp_.depth_filter_margin_, -1);
node_.param("grid_map/k_depth_scaling_factor", mp_.k_depth_scaling_factor_, -1.0);
node_.param("grid_map/skip_pixel", mp_.skip_pixel_, -1);
/*占据可能性，raycasting 栅格地图*/
node_.param("grid_map/p_hit", mp_.p_hit_, 0.70);
node_.param("grid_map/p_miss", mp_.p_miss_, 0.35);
node_.param("grid_map/p_min", mp_.p_min_, 0.12);
node_.param("grid_map/p_max", mp_.p_max_, 0.97);
node_.param("grid_map/p_occ", mp_.p_occ_, 0.80);
node_.param("grid_map/fading_time", mp_.fading_time_, 1000.0);
node_.param("grid_map/min_ray_length", mp_.min_ray_length_, 0.1);
node_.param("grid_map/show_occ_time", mp_.show_occ_time_, false); //显示栅格地图重要步骤计算时间
/* 障碍物膨胀不能超过地图分辨率的4倍 */
mp_.inf_grid_ = ceil((mp_.obstacles_inflation_ - 1e-5) / mp_.resolution_); //cell()函数：把一个小数向上取整
if (mp_.inf_grid_ > 4)
{
mp_.inf_grid_ = 4;
mp_.resolution_ = mp_.obstacles_inflation_ / mp_.inf_grid_;
ROS_WARN("Inflation is too big, which will cause siginificant computation! Resolution enalrged to %f automatically.", mp_.resolution_);
}
mp_.resolution_inv_ = 1 / mp_.resolution_;
mp_.local_update_range3i_ = (mp_.local_update_range3d_ * mp_.resolution_inv_).array().ceil().cast<int>();
mp_.local_update_range3d_ = mp_.local_update_range3i_.array().cast<double>() * mp_.resolution_;
md_.ringbuffer_size3i_ = 2 * mp_.local_update_range3i_;
md_.ringbuffer_inf_size3i_ = md_.ringbuffer_size3i_ + Eigen::Vector3i(2 * mp_.inf_grid_, 2 * mp_.inf_grid_, 2 * mp_.inf_grid_);
/* logit(x) (log((x) / (1 - (x)))) */
mp_.prob_hit_log_ = logit(mp_.p_hit_);
mp_.prob_miss_log_ = logit(mp_.p_miss_);
mp_.clamp_min_log_ = logit(mp_.p_min_);
mp_.clamp_max_log_ = logit(mp_.p_max_);
mp_.min_occupancy_log_ = logit(mp_.p_occ_);
cout << "hit: " << mp_.prob_hit_log_ << endl;
cout << "miss: " << mp_.prob_miss_log_ << endl;
cout << "min log: " << mp_.clamp_min_log_ << endl;
cout << "max: " << mp_.clamp_max_log_ << endl;
cout << "thresh log: " << mp_.min_occupancy_log_ << endl;
// initialize data buffers
Eigen::Vector3i map_voxel_num3i = 2 * mp_.local_update_range3i_;
int buffer_size = map_voxel_num3i(0) * map_voxel_num3i(1) * map_voxel_num3i(2);
int buffer_inf_size = (map_voxel_num3i(0) + 2 * mp_.inf_grid_) * (map_voxel_num3i(1) + 2 * mp_.inf_grid_) * (map_voxel_num3i(2) + 2 * mp_.inf_grid_);
md_.ringbuffer_origin3i_ = Eigen::Vector3i(0, 0, 0);
md_.ringbuffer_inf_origin3i_ = Eigen::Vector3i(0, 0, 0);
md_.occupancy_buffer_ = vector<double>(buffer_size, mp_.clamp_min_log_);
md_.occupancy_buffer_inflate_ = vector<uint16_t>(buffer_inf_size, 0);
md_.count_hit_and_miss_ = vector<short>(buffer_size, 0);
md_.count_hit_ = vector<short>(buffer_size, 0);
md_.flag_rayend_ = vector<char>(buffer_size, -1);
md_.flag_traverse_ = vector<char>(buffer_size, -1);
md_.cache_voxel_ = vector<Eigen::Vector3i>(buffer_size, Eigen::Vector3i(0, 0, 0));
md_.raycast_num_ = 0;
md_.proj_points_cnt_ = 0;
md_.cache_voxel_cnt_ = 0;
/* 相机外参 */
md_.cam2body_ << 0.0, 0.0, 1.0, 0.12,
-1.0, 0.0, 0.0, 0.0,
0.0, -1.0, 0.0, 0.0,
0.0, 0.0, 0.0, 1.0;
depth_sub_.reset(new message_filters::Subscriber<sensor_msgs::Image>(node_, "grid_map/depth", 50));
extrinsic_sub_ = node_.subscribe<nav_msgs::Odometry>(
"/vins_estimator/extrinsic", 10, &GridMap::extrinsicCallback, this); //sub
if (mp_.pose_type_ == POSE_STAMPED)
{
pose_sub_.reset(
new message_filters::Subscriber<geometry_msgs::PoseStamped>(node_, "grid_map/pose", 25));
sync_image_pose_.reset(new message_filters::Synchronizer<SyncPolicyImagePose>(
SyncPolicyImagePose(100), *depth_sub_, *pose_sub_));
sync_image_pose_->registerCallback(boost::bind(&GridMap::depthPoseCallback, this, _1, _2));
}
else if (mp_.pose_type_ == ODOMETRY)
{
odom_sub_.reset(new message_filters::Subscriber<nav_msgs::Odometry>(node_, "grid_map/odom", 100, ros::TransportHints().tcpNoDelay()));
sync_image_odom_.reset(new message_filters::Synchronizer<SyncPolicyImageOdom>(
SyncPolicyImageOdom(100), *depth_sub_, *odom_sub_));
sync_image_odom_->registerCallback(boost::bind(&GridMap::depthOdomCallback, this, _1, _2));
}
/*use odometry and point cloud*/
indep_odom_sub_ =
node_.subscribe<nav_msgs::Odometry>("grid_map/odom", 10, &GridMap::odomCallback, this);
indep_cloud_sub_ =
node_.subscribe<sensor_msgs::PointCloud2>("grid_map/cloud", 10, &GridMap::cloudCallback, this);
occ_timer_ = node_.createTimer(ros::Duration(0.032), &GridMap::updateOccupancyCallback, this);
vis_timer_ = node_.createTimer(ros::Duration(0.125), &GridMap::visCallback, this);
if (mp_.fading_time_ > 0) //true
fading_timer_ = node_.createTimer(ros::Duration(0.5), &GridMap::fadingCallback, this);
map_pub_ = node_.advertise<sensor_msgs::PointCloud2>("grid_map/occupancy", 10);
map_inf_pub_ = node_.advertise<sensor_msgs::PointCloud2>("grid_map/occupancy_inflate", 10);
md_.occ_need_update_ = false;
md_.has_first_depth_ = false;
md_.has_odom_ = false;
md_.last_occ_update_time_.fromSec(0);
md_.flag_have_ever_received_depth_ = false;
md_.flag_depth_odom_timeout_ = false;
}
void GridMap::updateOccupancyCallback(const ros::TimerEvent & /*event*/)
{
if (!checkDepthOdomNeedupdate())
return;
/* update occupancy */
ros::Time t1, t2, t3, t4, t5;
t1 = ros::Time::now();
moveRingBuffer();
t2 = ros::Time::now();
projectDepthImage();
t3 = ros::Time::now();
if (md_.proj_points_cnt_ > 0)
{
raycastProcess();
t4 = ros::Time::now();
clearAndInflateLocalMap();
t5 = ros::Time::now();
if (mp_.show_occ_time_)
{
cout << setprecision(7);
cout << "t2=" << (t2 - t1).toSec() << " t3=" << (t3 - t2).toSec() << " t4=" << (t4 - t3).toSec() << " t5=" << (t5 - t4).toSec() << endl;
static int updatetimes = 0;
static double raycasttime = 0;
static double max_raycasttime = 0;
static double inflationtime = 0;
static double max_inflationtime = 0;
raycasttime += (t4 - t3).toSec();
max_raycasttime = max(max_raycasttime, (t4 - t3).toSec());
inflationtime += (t5 - t4).toSec();
max_inflationtime = max(max_inflationtime, (t5 - t4).toSec());
++updatetimes;
printf("Raycast(ms): cur t = %lf, avg t = %lf, max t = %lf\n", (t4 - t3).toSec() * 1000, raycasttime / updatetimes * 1000, max_raycasttime * 1000);
printf("Infaltion(ms): cur t = %lf, avg t = %lf, max t = %lf\n", (t5 - t4).toSec() * 1000, inflationtime / updatetimes * 1000, max_inflationtime * 1000);
}
}
md_.occ_need_update_ = false;
}
void GridMap::visCallback(const ros::TimerEvent & /*event*/)
{
if (!mp_.have_initialized_)
return;
ros::Time t0 = ros::Time::now();
publishMapInflate();
publishMap();
ros::Time t1 = ros::Time::now();
if (mp_.show_occ_time_)
{
printf("Visualization(ms):%f\n", (t1 - t0).toSec() * 1000);
}
}
void GridMap::fadingCallback(const ros::TimerEvent & /*event*/)
{
const double reduce = (mp_.clamp_max_log_ - mp_.min_occupancy_log_) / (mp_.fading_time_ * 2); // function called at 2Hz
const double low_thres = mp_.clamp_min_log_ + reduce;
ros::Time t0 = ros::Time::now();
for (size_t i = 0; i < md_.occupancy_buffer_.size(); ++i)
{
if (md_.occupancy_buffer_[i] > low_thres)
{
bool obs_flag = md_.occupancy_buffer_[i] >= mp_.min_occupancy_log_;
md_.occupancy_buffer_[i] -= reduce;
if (obs_flag && md_.occupancy_buffer_[i] < mp_.min_occupancy_log_)
{
Eigen::Vector3i idx = BufIdx2GlobalIdx(i);
int inf_buf_idx = globalIdx2InfBufIdx(idx);
changeInfBuf(false, inf_buf_idx, idx);
}
}
}
ros::Time t1 = ros::Time::now();
if (mp_.show_occ_time_)
{
printf("Fading(ms):%f\n", (t1 - t0).toSec() * 1000);
}
}
void GridMap::depthPoseCallback(const sensor_msgs::ImageConstPtr &img,
const geometry_msgs::PoseStampedConstPtr &pose)
{
/* get depth image */
cv_bridge::CvImagePtr cv_ptr;
cv_ptr = cv_bridge::toCvCopy(img, img->encoding);
if (img->encoding == sensor_msgs::image_encodings::TYPE_32FC1)
{
(cv_ptr->image).convertTo(cv_ptr->image, CV_16UC1, mp_.k_depth_scaling_factor_);
}
cv_ptr->image.copyTo(md_.depth_image_);
static bool first_flag = true;
if (first_flag)
{
first_flag = false;
md_.proj_points_.resize(md_.depth_image_.cols * md_.depth_image_.rows / mp_.skip_pixel_ / mp_.skip_pixel_);
}
// std::cout << "depth: " << md_.depth_image_.cols << ", " << md_.depth_image_.rows << std::endl;
md_.camera_pos_(0) = pose->pose.position.x;
md_.camera_pos_(1) = pose->pose.position.y;
md_.camera_pos_(2) = pose->pose.position.z;
md_.camera_r_m_ = Eigen::Quaterniond(pose->pose.orientation.w, pose->pose.orientation.x,
pose->pose.orientation.y, pose->pose.orientation.z)
.toRotationMatrix();
md_.occ_need_update_ = true;
md_.flag_have_ever_received_depth_ = true;
}
void GridMap::depthOdomCallback(const sensor_msgs::ImageConstPtr &img,
const nav_msgs::OdometryConstPtr &odom)
{
Eigen::Quaterniond body_q = Eigen::Quaterniond(odom->pose.pose.orientation.w,
odom->pose.pose.orientation.x,
odom->pose.pose.orientation.y,
odom->pose.pose.orientation.z);
Eigen::Matrix3d body_r_m = body_q.toRotationMatrix();
Eigen::Matrix4d body2world;
body2world.block<3, 3>(0, 0) = body_r_m;
body2world(0, 3) = odom->pose.pose.position.x;
body2world(1, 3) = odom->pose.pose.position.y;
body2world(2, 3) = odom->pose.pose.position.z;
body2world(3, 3) = 1.0;
Eigen::Matrix4d cam_T = body2world * md_.cam2body_;
md_.camera_pos_(0) = cam_T(0, 3);
md_.camera_pos_(1) = cam_T(1, 3);
md_.camera_pos_(2) = cam_T(2, 3);
md_.camera_r_m_ = cam_T.block<3, 3>(0, 0);
/* get depth image */
cv_bridge::CvImagePtr cv_ptr;
cv_ptr = cv_bridge::toCvCopy(img, img->encoding);
if (img->encoding == sensor_msgs::image_encodings::TYPE_32FC1)
{
(cv_ptr->image).convertTo(cv_ptr->image, CV_16UC1, mp_.k_depth_scaling_factor_);
}
cv_ptr->image.copyTo(md_.depth_image_);
static bool first_flag = true;
if (first_flag)
{
first_flag = false;
md_.proj_points_.resize(md_.depth_image_.cols * md_.depth_image_.rows / mp_.skip_pixel_ / mp_.skip_pixel_);
}
md_.occ_need_update_ = true;
md_.flag_have_ever_received_depth_ = true;
}
void GridMap::odomCallback(const nav_msgs::OdometryConstPtr &odom)
{
if (md_.flag_have_ever_received_depth_)
{
indep_odom_sub_.shutdown();
return;
}
/* get pose */
Eigen::Quaterniond body_q = Eigen::Quaterniond(odom->pose.pose.orientation.w,
odom->pose.pose.orientation.x,
odom->pose.pose.orientation.y,
odom->pose.pose.orientation.z);
Eigen::Matrix3d body_r_m = body_q.toRotationMatrix();
Eigen::Matrix4d body2world;
body2world.block<3, 3>(0, 0) = body_r_m;
body2world(0, 3) = odom->pose.pose.position.x;
body2world(1, 3) = odom->pose.pose.position.y;
body2world(2, 3) = odom->pose.pose.position.z;
body2world(3, 3) = 1.0;
Eigen::Matrix4d cam_T = body2world * md_.cam2body_;
md_.camera_pos_(0) = cam_T(0, 3);
md_.camera_pos_(1) = cam_T(1, 3);
md_.camera_pos_(2) = cam_T(2, 3);
md_.camera_r_m_ = cam_T.block<3, 3>(0, 0);
md_.has_odom_ = true;
odom_drone = *odom;
}
void GridMap::cloudCallback(const sensor_msgs::PointCloud2ConstPtr &img)
{
if (!md_.has_odom_)
{
std::cout << "grid_map: no odom!" << std::endl;
return;
}
pcl::PointCloud<pcl::PointXYZ> latest_cloud_l;
pcl::PointCloud<pcl::PointXYZ> latest_cloud_b;
pcl::PointCloud<pcl::PointXYZ> latest_cloud_w;
/*sensor_msgs::PointCloud2->pcl::PointCloud<pcl::PointXYZ>*/
pcl::fromROSMsg(*img, latest_cloud_l);
double x, y, z, roll, pitch, yaw;
x = odom_drone.pose.pose.position.x;
y = odom_drone.pose.pose.position.y;
z = odom_drone.pose.pose.position.z;
tf::Quaternion orientation;
tf::quaternionMsgToTF(odom_drone.pose.pose.orientation, orientation);
tf::Matrix3x3(orientation).getRPY(roll, pitch, yaw);
pcl::transformPointCloud(latest_cloud_l, latest_cloud_b, pcl::getTransformation(0, 0, -0.2, 0.0, 0.0, 0)); // lidar to body
pcl::transformPointCloud(latest_cloud_b, latest_cloud_w, pcl::getTransformation(x, y, z, 0.0, 0.0, yaw)); // body to world
if (latest_cloud_w.points.size() == 0)
return;
if (isnan(md_.camera_pos_(0)) || isnan(md_.camera_pos_(1)) || isnan(md_.camera_pos_(2)))
return;
moveRingBuffer();
pcl::PointXYZ pt;
Eigen::Vector3d p3d, p3d_inf;
for (size_t i = 0; i < latest_cloud_w.points.size(); ++i)
{
pt = latest_cloud_w.points[i];
p3d(0) = pt.x, p3d(1) = pt.y, p3d(2) = pt.z;
if (p3d.array().isNaN().sum())
continue;
if (isInBuf(p3d))
{
/* inflate the point */
Eigen::Vector3i idx = pos2GlobalIdx(p3d);
int buf_id = globalIdx2BufIdx(idx);
int inf_buf_id = globalIdx2InfBufIdx(idx);
md_.occupancy_buffer_[buf_id] = mp_.clamp_max_log_;
if (md_.occupancy_buffer_inflate_[inf_buf_id] < GRID_MAP_OBS_FLAG && md_.occupancy_buffer_[buf_id] >= mp_.min_occupancy_log_)
{
changeInfBuf(true, inf_buf_id, idx);
}
}
}
void GridMap::moveRingBuffer()
{
// 如果地图尚未初始化，则调用 initMapBoundary 函数进行初始化
if (!mp_.have_initialized_)
initMapBoundary();
Eigen::Vector3i center_new = pos2GlobalIdx(md_.camera_pos_);
Eigen::Vector3i ringbuffer_lowbound3i_new = center_new - mp_.local_update_range3i_;
Eigen::Vector3d ringbuffer_lowbound3d_new = ringbuffer_lowbound3i_new.cast<double>() * mp_.resolution_;
Eigen::Vector3i ringbuffer_upbound3i_new = center_new + mp_.local_update_range3i_;
Eigen::Vector3d ringbuffer_upbound3d_new = ringbuffer_upbound3i_new.cast<double>() * mp_.resolution_;
ringbuffer_upbound3i_new -= Eigen::Vector3i(1, 1, 1);
const Eigen::Vector3i inf_grid3i(mp_.inf_grid_, mp_.inf_grid_, mp_.inf_grid_);
const Eigen::Vector3d inf_grid3d = inf_grid3i.array().cast<double>() * mp_.resolution_;
Eigen::Vector3i ringbuffer_inf_lowbound3i_new = ringbuffer_lowbound3i_new - inf_grid3i;
Eigen::Vector3d ringbuffer_inf_lowbound3d_new = ringbuffer_lowbound3d_new - inf_grid3d;
Eigen::Vector3i ringbuffer_inf_upbound3i_new = ringbuffer_upbound3i_new + inf_grid3i;
Eigen::Vector3d ringbuffer_inf_upbound3d_new = ringbuffer_upbound3d_new + inf_grid3d;
if (center_new(0) < md_.center_last3i_(0))
clearBuffer(0, ringbuffer_upbound3i_new(0));
if (center_new(0) > md_.center_last3i_(0))
clearBuffer(1, ringbuffer_lowbound3i_new(0));
if (center_new(1) < md_.center_last3i_(1))
clearBuffer(2, ringbuffer_upbound3i_new(1));
if (center_new(1) > md_.center_last3i_(1))
clearBuffer(3, ringbuffer_lowbound3i_new(1));
if (center_new(2) < md_.center_last3i_(2))
clearBuffer(4, ringbuffer_upbound3i_new(2));
if (center_new(2) > md_.center_last3i_(2))
clearBuffer(5, ringbuffer_lowbound3i_new(2));
for (int i = 0; i < 3; ++i)
{
while (md_.ringbuffer_origin3i_(i) < md_.ringbuffer_lowbound3i_(i))
{
md_.ringbuffer_origin3i_(i) += md_.ringbuffer_size3i_(i);
}
while (md_.ringbuffer_origin3i_(i) > md_.ringbuffer_upbound3i_(i))
{
md_.ringbuffer_origin3i_(i) -= md_.ringbuffer_size3i_(i);
}
while (md_.ringbuffer_inf_origin3i_(i) < md_.ringbuffer_inf_lowbound3i_(i))
{
md_.ringbuffer_inf_origin3i_(i) += md_.ringbuffer_inf_size3i_(i);
}
while (md_.ringbuffer_inf_origin3i_(i) > md_.ringbuffer_inf_upbound3i_(i))
{
md_.ringbuffer_inf_origin3i_(i) -= md_.ringbuffer_inf_size3i_(i);
}
}
md_.center_last3i_ = center_new;
md_.ringbuffer_lowbound3i_ = ringbuffer_lowbound3i_new;
md_.ringbuffer_lowbound3d_ = ringbuffer_lowbound3d_new;
md_.ringbuffer_upbound3i_ = ringbuffer_upbound3i_new;
md_.ringbuffer_upbound3d_ = ringbuffer_upbound3d_new;
md_.ringbuffer_inf_lowbound3i_ = ringbuffer_inf_lowbound3i_new;
md_.ringbuffer_inf_lowbound3d_ = ringbuffer_inf_lowbound3d_new;
md_.ringbuffer_inf_upbound3i_ = ringbuffer_inf_upbound3i_new;
md_.ringbuffer_inf_upbound3d_ = ringbuffer_inf_upbound3d_new;
}
void GridMap::projectDepthImage()
{
md_.proj_points_cnt_ = 0;
uint16_t *row_ptr;
int cols = md_.depth_image_.cols;
int rows = md_.depth_image_.rows;
int skip_pix = mp_.skip_pixel_;
double depth;
Eigen::Matrix3d camera_r = md_.camera_r_m_;
if (!mp_.use_depth_filter_)
{
for (int v = 0; v < rows; v += skip_pix)
{
row_ptr = md_.depth_image_.ptr<uint16_t>(v);
for (int u = 0; u < cols; u += skip_pix)
{
Eigen::Vector3d proj_pt;
depth = (*row_ptr) / mp_.k_depth_scaling_factor_;
row_ptr = row_ptr + mp_.skip_pixel_;
if (depth < 0.1)
continue;
proj_pt(0) = (u - mp_.cx_) * depth / mp_.fx_;
proj_pt(1) = (v - mp_.cy_) * depth / mp_.fy_;
proj_pt(2) = depth;
proj_pt = camera_r * proj_pt + md_.camera_pos_;
md_.proj_points_[md_.proj_points_cnt_++] = proj_pt;
}
}
}
/* use depth filter */
else
{
if (!md_.has_first_depth_)
md_.has_first_depth_ = true;
else
{
Eigen::Vector3d pt_cur, pt_world, pt_reproj;
Eigen::Matrix3d last_camera_r_inv;
last_camera_r_inv = md_.last_camera_r_m_.inverse();
const double inv_factor = 1.0 / mp_.k_depth_scaling_factor_;
for (int v = mp_.depth_filter_margin_; v < rows - mp_.depth_filter_margin_; v += mp_.skip_pixel_)
{
row_ptr = md_.depth_image_.ptr<uint16_t>(v) + mp_.depth_filter_margin_;
for (int u = mp_.depth_filter_margin_; u < cols - mp_.depth_filter_margin_;
u += mp_.skip_pixel_)
{
depth = (*row_ptr) * inv_factor;
row_ptr = row_ptr + mp_.skip_pixel_;
// filter depth
// depth += rand_noise_(eng_);
// if (depth > 0.01) depth += rand_noise2_(eng_);
if (depth < mp_.depth_filter_mindist_)
{
continue;
}
// project to world frame
pt_cur(0) = (u - mp_.cx_) * depth / mp_.fx_;
pt_cur(1) = (v - mp_.cy_) * depth / mp_.fy_;
pt_cur(2) = depth;
pt_world = camera_r * pt_cur + md_.camera_pos_;
md_.proj_points_[md_.proj_points_cnt_++] = pt_world;
// check consistency with last image, disabled...
if (false)
{
pt_reproj = last_camera_r_inv * (pt_world - md_.last_camera_pos_);
double uu = pt_reproj.x() * mp_.fx_ / pt_reproj.z() + mp_.cx_;
double vv = pt_reproj.y() * mp_.fy_ / pt_reproj.z() + mp_.cy_;
if (uu >= 0 && uu < cols && vv >= 0 && vv < rows)
{
if (fabs(md_.last_depth_image_.at<uint16_t>((int)vv, (int)uu) * inv_factor -
pt_reproj.z()) < mp_.depth_filter_tolerance_)
{
md_.proj_points_[md_.proj_points_cnt_++] = pt_world;
}
}
else
{
md_.proj_points_[md_.proj_points_cnt_++] = pt_world;
}
}
}
}
}
}
/* maintain camera pose for consistency check */
md_.last_camera_pos_ = md_.camera_pos_;
md_.last_camera_r_m_ = md_.camera_r_m_;
md_.last_depth_image_ = md_.depth_image_;
}
void GridMap::raycastProcess()
{
md_.cache_voxel_cnt_ = 0;
ros::Time t1, t2, t3;
md_.raycast_num_ += 1;
RayCaster raycaster;
Eigen::Vector3d ray_pt, pt_w;
int pts_num = 0;
t1 = ros::Time::now();
for (int i = 0; i < md_.proj_points_cnt_; ++i)
{
int vox_idx;
pt_w = md_.proj_points_[i];
// set flag for projected point
if (!isInBuf(pt_w))
{
pt_w = closetPointInMap(pt_w, md_.camera_pos_);
pts_num++;
vox_idx = setCacheOccupancy(pt_w, 0);
}
else
{
pts_num++;
vox_idx = setCacheOccupancy(pt_w, 1);
}
// raycasting between camera center and point
if (vox_idx != INVALID_IDX)
{
if (md_.flag_rayend_[vox_idx] == md_.raycast_num_)
{
continue;
}
else
{
md_.flag_rayend_[vox_idx] = md_.raycast_num_;
}
}
raycaster.setInput(pt_w / mp_.resolution_, md_.camera_pos_ / mp_.resolution_);
while (raycaster.step(ray_pt))
{
Eigen::Vector3d tmp = (ray_pt + Eigen::Vector3d(0.5, 0.5, 0.5)) * mp_.resolution_;
pts_num++;
vox_idx = setCacheOccupancy(tmp, 0);
if (vox_idx != INVALID_IDX)
{
if (md_.flag_traverse_[vox_idx] == md_.raycast_num_)
{
break;
}
else
{
md_.flag_traverse_[vox_idx] = md_.raycast_num_;
}
}
}
}
t2 = ros::Time::now();
for (int i = 0; i < md_.cache_voxel_cnt_; ++i)
{
int idx_ctns = globalIdx2BufIdx(md_.cache_voxel_[i]);
double log_odds_update =
md_.count_hit_[idx_ctns] >= md_.count_hit_and_miss_[idx_ctns] - md_.count_hit_[idx_ctns] ? mp_.prob_hit_log_ : mp_.prob_miss_log_;
md_.count_hit_[idx_ctns] = md_.count_hit_and_miss_[idx_ctns] = 0;
if (log_odds_update >= 0 && md_.occupancy_buffer_[idx_ctns] >= mp_.clamp_max_log_)
{
continue;
}
else if (log_odds_update <= 0 && md_.occupancy_buffer_[idx_ctns] <= mp_.clamp_min_log_)
{
continue;
}
md_.occupancy_buffer_[idx_ctns] =
std::min(std::max(md_.occupancy_buffer_[idx_ctns] + log_odds_update, mp_.clamp_min_log_),
mp_.clamp_max_log_);
}
t3 = ros::Time::now();
if (mp_.show_occ_time_)
{
ROS_WARN("Raycast time: t2-t1=%f, t3-t2=%f, pts_num=%d", (t2 - t1).toSec(), (t3 - t2).toSec(), pts_num);
}
}
void GridMap::clearAndInflateLocalMap()
{
for (int i = 0; i < md_.cache_voxel_cnt_; ++i)
{
Eigen::Vector3i idx = md_.cache_voxel_[i];
int buf_id = globalIdx2BufIdx(idx);
int inf_buf_id = globalIdx2InfBufIdx(idx);
if (md_.occupancy_buffer_inflate_[inf_buf_id] < GRID_MAP_OBS_FLAG && md_.occupancy_buffer_[buf_id] >= mp_.min_occupancy_log_)
{
changeInfBuf(true, inf_buf_id, idx);
}
if (md_.occupancy_buffer_inflate_[inf_buf_id] >= GRID_MAP_OBS_FLAG && md_.occupancy_buffer_[buf_id] < mp_.min_occupancy_log_)
{
changeInfBuf(false, inf_buf_id, idx);
}
}
}
void GridMap::initMapBoundary()
{
mp_.have_initialized_ = true;
md_.center_last3i_ = pos2GlobalIdx(md_.camera_pos_);
md_.ringbuffer_lowbound3i_ = md_.center_last3i_ - mp_.local_update_range3i_;
md_.ringbuffer_lowbound3d_ = md_.ringbuffer_lowbound3i_.cast<double>() * mp_.resolution_;
md_.ringbuffer_upbound3i_ = md_.center_last3i_ + mp_.local_update_range3i_;
md_.ringbuffer_upbound3d_ = md_.ringbuffer_upbound3i_.cast<double>() * mp_.resolution_;
md_.ringbuffer_upbound3i_ -= Eigen::Vector3i(1, 1, 1);
const Eigen::Vector3i inf_grid3i(mp_.inf_grid_, mp_.inf_grid_, mp_.inf_grid_);
const Eigen::Vector3d inf_grid3d = inf_grid3i.array().cast<double>() * mp_.resolution_;
md_.ringbuffer_inf_lowbound3i_ = md_.ringbuffer_lowbound3i_ - inf_grid3i;
md_.ringbuffer_inf_lowbound3d_ = md_.ringbuffer_lowbound3d_ - inf_grid3d;
md_.ringbuffer_inf_upbound3i_ = md_.ringbuffer_upbound3i_ + inf_grid3i;
md_.ringbuffer_inf_upbound3d_ = md_.ringbuffer_upbound3d_ + inf_grid3d;
// cout << "md_.ringbuffer_lowbound3i_=" << md_.ringbuffer_lowbound3i_.transpose() << " md_.ringbuffer_lowbound3d_=" << md_.ringbuffer_lowbound3d_.transpose() << " md_.ringbuffer_upbound3i_=" << md_.ringbuffer_upbound3i_.transpose() << " md_.ringbuffer_upbound3d_=" << md_.ringbuffer_upbound3d_.transpose() << endl;
for (int i = 0; i < 3; ++i)
{
while (md_.ringbuffer_origin3i_(i) < md_.ringbuffer_lowbound3i_(i))
{
md_.ringbuffer_origin3i_(i) += md_.ringbuffer_size3i_(i);
}
while (md_.ringbuffer_origin3i_(i) > md_.ringbuffer_upbound3i_(i))
{
md_.ringbuffer_origin3i_(i) -= md_.ringbuffer_size3i_(i);
}
while (md_.ringbuffer_inf_origin3i_(i) < md_.ringbuffer_inf_lowbound3i_(i))
{
md_.ringbuffer_inf_origin3i_(i) += md_.ringbuffer_inf_size3i_(i);
}
while (md_.ringbuffer_inf_origin3i_(i) > md_.ringbuffer_inf_upbound3i_(i))
{
md_.ringbuffer_inf_origin3i_(i) -= md_.ringbuffer_inf_size3i_(i);
}
}
#if GRID_MAP_NEW_PLATFORM_TEST
testIndexingCost();
#endif
}
void GridMap::clearBuffer(char casein, int bound)
{
for (int x = (casein == 0 ? bound : md_.ringbuffer_lowbound3i_(0)); x <= (casein == 1 ? bound : md_.ringbuffer_upbound3i_(0)); ++x)
for (int y = (casein == 2 ? bound : md_.ringbuffer_lowbound3i_(1)); y <= (casein == 3 ? bound : md_.ringbuffer_upbound3i_(1)); ++y)
for (int z = (casein == 4 ? bound : md_.ringbuffer_lowbound3i_(2)); z <= (casein == 5 ? bound : md_.ringbuffer_upbound3i_(2)); ++z)
{
Eigen::Vector3i id_global(x, y, z);
int id_buf = globalIdx2BufIdx(id_global);
int id_buf_inf = globalIdx2InfBufIdx(id_global);
Eigen::Vector3i id_global_inf_clr((casein == 0 ? x + mp_.inf_grid_ : (casein == 1 ? x - mp_.inf_grid_ : x)),
(casein == 2 ? y + mp_.inf_grid_ : (casein == 3 ? y - mp_.inf_grid_ : y)),
(casein == 4 ? z + mp_.inf_grid_ : (casein == 5 ? z - mp_.inf_grid_ : z)));
// int id_buf_inf_clr = globalIdx2InfBufIdx(id_global_inf_clr);
// md_.occupancy_buffer_inflate_[id_buf_inf_clr] = 0;
md_.count_hit_[id_buf] = 0;
md_.count_hit_and_miss_[id_buf] = 0;
md_.flag_traverse_[id_buf] = md_.raycast_num_;
md_.flag_rayend_[id_buf] = md_.raycast_num_;
md_.occupancy_buffer_[id_buf] = mp_.clamp_min_log_;
if (md_.occupancy_buffer_inflate_[id_buf_inf] > GRID_MAP_OBS_FLAG)
{
changeInfBuf(false, id_buf_inf, id_global);
}
}
#if GRID_MAP_NEW_PLATFORM_TEST
for (int x = (casein == 0 ? bound : md_.ringbuffer_lowbound3i_(0)); x <= (casein == 1 ? bound : md_.ringbuffer_upbound3i_(0)); ++x)
for (int y = (casein == 2 ? bound : md_.ringbuffer_lowbound3i_(1)); y <= (casein == 3 ? bound : md_.ringbuffer_upbound3i_(1)); ++y)
for (int z = (casein == 4 ? bound : md_.ringbuffer_lowbound3i_(2)); z <= (casein == 5 ? bound : md_.ringbuffer_upbound3i_(2)); ++z)
{
Eigen::Vector3i id_global_inf_clr((casein == 0 ? x + mp_.inf_grid_ : (casein == 1 ? x - mp_.inf_grid_ : x)),
(casein == 2 ? y + mp_.inf_grid_ : (casein == 3 ? y - mp_.inf_grid_ : y)),
(casein == 4 ? z + mp_.inf_grid_ : (casein == 5 ? z - mp_.inf_grid_ : z)));
int id_buf_inf_clr = globalIdx2InfBufIdx(id_global_inf_clr);
if (md_.occupancy_buffer_inflate_[id_buf_inf_clr] != 0)
{
ROS_ERROR("Here should be 0!!! md_.occupancy_buffer_inflate_[id_buf_inf_clr]=%d", md_.occupancy_buffer_inflate_[id_buf_inf_clr]);
}
}
#endif
}
Eigen::Vector3d GridMap::closetPointInMap(const Eigen::Vector3d &pt, const Eigen::Vector3d &camera_pt)
{
Eigen::Vector3d diff = pt - camera_pt;
Eigen::Vector3d max_tc = md_.ringbuffer_upbound3d_ - camera_pt;
Eigen::Vector3d min_tc = md_.ringbuffer_lowbound3d_ - camera_pt;
double min_t = 1000000;
for (int i = 0; i < 3; ++i)
{
if (fabs(diff[i]) > 0)
{
double t1 = max_tc[i] / diff[i];
if (t1 > 0 && t1 < min_t)
min_t = t1;
double t2 = min_tc[i] / diff[i];
if (t2 > 0 && t2 < min_t)
min_t = t2;
}
}
return camera_pt + (min_t - 1e-3) * diff;
}
bool GridMap::checkDepthOdomNeedupdate()
{
if (md_.last_occ_update_time_.toSec() < 1.0)
{
md_.last_occ_update_time_ = ros::Time::now();
}
if (!md_.occ_need_update_)
{
if (md_.flag_have_ever_received_depth_ && (ros::Time::now() - md_.last_occ_update_time_).toSec() > mp_.odom_depth_timeout_)
{
ROS_ERROR("odom or depth lost! ros::Time::now()=%f, md_.last_occ_update_time_=%f, mp_.odom_depth_timeout_=%f",
ros::Time::now().toSec(), md_.last_occ_update_time_.toSec(), mp_.odom_depth_timeout_);
md_.flag_depth_odom_timeout_ = true;
}
return false;
}
md_.last_occ_update_time_ = ros::Time::now();
return true;
}
void GridMap::publishMap()
{
if (map_pub_.getNumSubscribers() <= 0)
return;
Eigen::Vector3d heading = (md_.camera_r_m_ * md_.cam2body_.block<3, 3>(0, 0).transpose()).block<3, 1>(0, 0);
pcl::PointCloud<pcl::PointXYZ> cloud;
double lbz = mp_.enable_virtual_walll_ ? max(md_.ringbuffer_lowbound3d_(2), mp_.virtual_ground_) : md_.ringbuffer_lowbound3d_(2);
double ubz = mp_.enable_virtual_walll_ ? min(md_.ringbuffer_upbound3d_(2), mp_.virtual_ceil_) : md_.ringbuffer_upbound3d_(2);
if (md_.ringbuffer_upbound3d_(0) - md_.ringbuffer_lowbound3d_(0) > mp_.resolution_ && (md_.ringbuffer_upbound3d_(1) - md_.ringbuffer_lowbound3d_(1)) > mp_.resolution_ && (ubz - lbz) > mp_.resolution_)
for (double xd = md_.ringbuffer_lowbound3d_(0) + mp_.resolution_ / 2; xd <= md_.ringbuffer_upbound3d_(0); xd += mp_.resolution_)
for (double yd = md_.ringbuffer_lowbound3d_(1) + mp_.resolution_ / 2; yd <= md_.ringbuffer_upbound3d_(1); yd += mp_.resolution_)
for (double zd = lbz + mp_.resolution_ / 2; zd <= ubz; zd += mp_.resolution_)
{
Eigen::Vector3d relative_dir = (Eigen::Vector3d(xd, yd, zd) - md_.camera_pos_);
if (heading.dot(relative_dir.normalized()) > 0.5)
{
if (md_.occupancy_buffer_[globalIdx2BufIdx(pos2GlobalIdx(Eigen::Vector3d(xd, yd, zd)))] >= mp_.min_occupancy_log_)
cloud.push_back(pcl::PointXYZ(xd, yd, zd));
}
}
cloud.width = cloud.points.size();
cloud.height = 1;
cloud.is_dense = true;
cloud.header.frame_id = mp_.frame_id_;
sensor_msgs::PointCloud2 cloud_msg;
pcl::toROSMsg(cloud, cloud_msg);
map_pub_.publish(cloud_msg);
}
void GridMap::publishMapInflate()
{
if (map_inf_pub_.getNumSubscribers() <= 0)
return;
pcl::PointCloud<pcl::PointXYZ> cloud;
for (double xd = md_.ringbuffer_inf_lowbound3d_(0) + mp_.resolution_ / 2; xd < md_.ringbuffer_inf_upbound3d_(0); xd += mp_.resolution_)
for (double yd = md_.ringbuffer_inf_lowbound3d_(1) + mp_.resolution_ / 2; yd < md_.ringbuffer_inf_upbound3d_(1); yd += mp_.resolution_)
for (double zd = md_.ringbuffer_inf_lowbound3d_(2) + mp_.resolution_ / 2; zd < md_.ringbuffer_inf_upbound3d_(2); zd += mp_.resolution_)
{
if (md_.occupancy_buffer_inflate_[globalIdx2InfBufIdx(pos2GlobalIdx(Eigen::Vector3d(xd, yd, zd)))])
cloud.push_back(pcl::PointXYZ(xd, yd, zd));
}
cloud.width = cloud.points.size();
cloud.height = 1;
cloud.is_dense = true;
cloud.header.frame_id = mp_.frame_id_;
sensor_msgs::PointCloud2 cloud_msg;
pcl::toROSMsg(cloud, cloud_msg);
map_inf_pub_.publish(cloud_msg);
}
