DataGridView控件使用了DataGridViewComboBoxColumn后出现下拉框背景为黑色
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace dataGridview
{
public partial class Form1 : Form
{
private DataGridView dataGridView1;
public Form1()
{
InitializeComponent();
Init();
SetupDataGridView();
}
private void Init()
{
this.dataGridView1 = new DataGridView();
((System.ComponentModel.ISupportInitialize)(this.dataGridView1)).BeginInit();
this.SuspendLayout();
// 设置 DataGridView
this.dataGridView1.Dock = DockStyle.Fill;
this.dataGridView1.EditingControlShowing += new DataGridViewEditingControlShowingEventHandler(dataGridView1_EditingControlShowing);
this.Controls.Add(this.dataGridView1);
// 设置窗体
this.ClientSize = new Size(800, 450);
this.Text = "DataGridView ComboBox Example";
((System.ComponentModel.ISupportInitialize)(this.dataGridView1)).EndInit();
this.ResumeLayout(false);
}
private void SetupDataGridView()
{
// 添加一列 DataGridViewComboBoxColumn
var comboBoxColumn = new DataGridViewComboBoxColumn
{
Name = "ComboBoxColumn",
HeaderText = "选择项",
DataPropertyName = "Name", // 绑定到实际值
DisplayMember = "DisplayName", // 显示名称
ValueMember = "Name", // 实际值
DataSource = GetInitialDataSource() // 初始数据源
};
// 添加列到 DataGridView
dataGridView1.Columns.Add(comboBoxColumn);
// 添加一些示例数据
List<data> source = new List<data>
{
new data{Name = "Value1" },
new data{Name = "Value2" },
new data{Name = "Value3" }
};
dataGridView1.DataSource = source;
}
private List<ComboBoxItem> GetInitialDataSource()
{
return new List<ComboBoxItem>
{
new ComboBoxItem { DisplayName = "选项1", Name = "Value1" },
new ComboBoxItem { DisplayName = "选项2", Name = "Value2" },
new ComboBoxItem { DisplayName = "选项3", Name = "Value3" },
new ComboBoxItem { DisplayName = "选项4", Name = "Value4" }
};
}
private List<ComboBoxItem> GetUpdatedDataSource()
{
return new List<ComboBoxItem>
{
new ComboBoxItem { DisplayName = "选项1", Name = "Value1" },
new ComboBoxItem { DisplayName = "选项2", Name = "Value2" },
new ComboBoxItem { DisplayName = "选项4", Name = "Value4" }
};
}
private void dataGridView1_EditingControlShowing(object sender, DataGridViewEditingControlShowingEventArgs e)
{
if (dataGridView1.CurrentCell.OwningColumn.Name == "ComboBoxColumn" && e.Control is ComboBox comboBox)
{
//
var curDis = dataGridView1.CurrentCell.FormattedValue?.ToString();
var newSource = GetUpdatedDataSource();
// 修改数据源
comboBox.DataSource = newSource;
comboBox.DisplayMember = "DisplayName";
comboBox.ValueMember = "Name";
comboBox.BackColor = SystemColors.Window;
}
}
}
// ComboBox 数据项类
public class ComboBoxItem
{
public string DisplayName { get; set; }
public string Name { get; set; }
}
public class data
{
public string Name { get; set; }
}
}

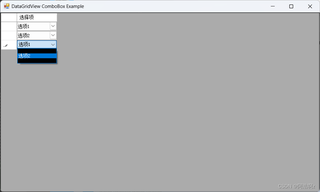

如上述代码所示,当我使用 var curDis = dataGridView1.CurrentCell.FormattedValue?.ToString();后,就会出现以下图片所示问题

寻求友友解惑
