air780e stm32标准库发送英文短信

Question

这三部分hal库代码如何转成标准库代码呀？求解，需要实现向手机发送英文短信

Answer 1

让【宝码香车】来帮你解答，本回答参考DeepSeek编写，并整理提供。
如果还有疑问可以点击头像关注私信或评论。如果答案让您满意，请采纳、点赞、关注，非常感谢！

将HAL库代码转换为STM32标准库代码

根据您提供的HAL库代码，我将为您转换为STM32标准库代码，实现通过AIR780E模块发送英文短信的功能。

1. 串口接收中断回调函数转换

原HAL库代码：

void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart) {
    if (huart == &huart2) {
        if (point2 < USART2_MAX_RECV_LEN) {
            USART2_RX_BUF[point2++] = c;
            HAL_UART_Receive_IT(huart, (uint8_t *)&c, 1);
        }
    }
}

标准库代码：

void USART2_IRQHandler(void) {
    if(USART_GetITStatus(USART2, USART_IT_RXNE) != RESET) {
        if(point2 < USART2_MAX_RECV_LEN) {
            USART2_RX_BUF[point2++] = USART_ReceiveData(USART2);
        }
        USART_ClearITPendingBit(USART2, USART_IT_RXNE);
    }
}

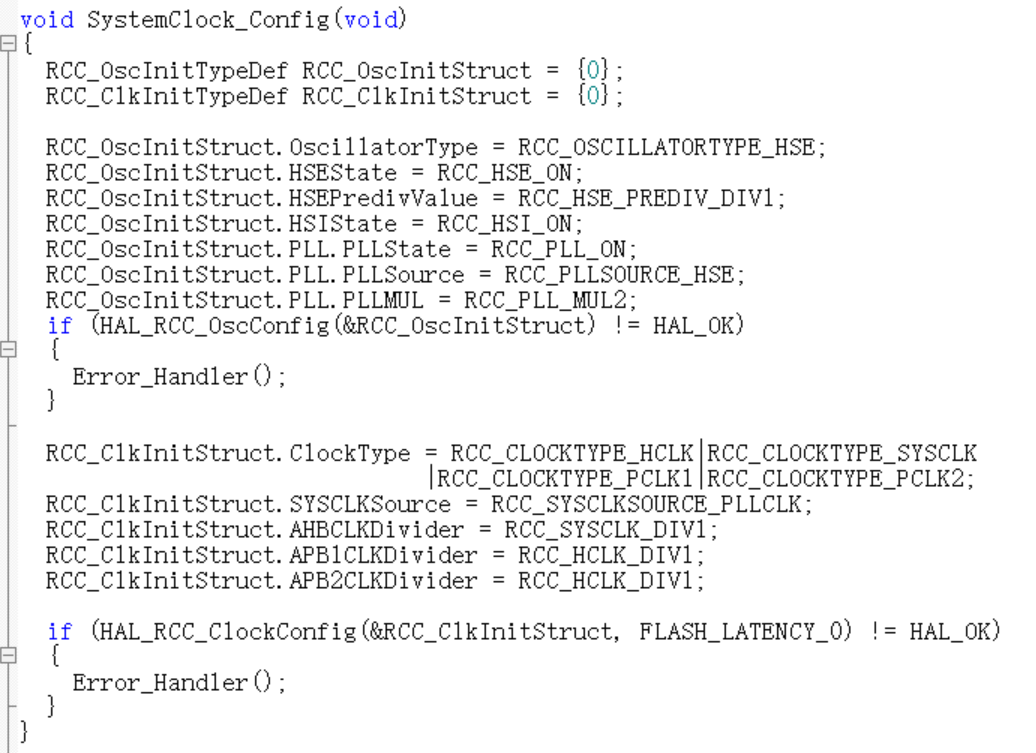

2. 系统时钟配置转换

原HAL库代码：

void SystemClock_Config(void) {
    RCC_OscInitTypeDef RCC_OscInitStruct = {0};
    RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

    RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
    RCC_OscInitStruct.HSEState = RCC_HSE_ON;
    RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
    RCC_OscInitStruct.HSIState = RCC_HSI_ON;
    RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
    RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
    RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MULZ;

    if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK) {
        Error_Handler();
    }

    RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                                |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
    RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
    RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
    RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;
    RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

    if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_0) != HAL_OK) {
        Error_Handler();
    }
}

标准库代码：

void SystemClock_Config(void) {
    RCC_DeInit();

    RCC_HSEConfig(RCC_HSE_ON);
    while(RCC_GetFlagStatus(RCC_FLAG_HSERDY) == RESET);

    RCC_PLLConfig(RCC_PLLSource_HSE_Div1, RCC_PLLMul_Z);
    RCC_PLLCmd(ENABLE);
    while(RCC_GetFlagStatus(RCC_FLAG_PLLRDY) == RESET);

    RCC_SYSCLKConfig(RCC_SYSCLKSource_PLLCLK);
    RCC_HCLKConfig(RCC_SYSCLK_Div1);
    RCC_PCLK1Config(RCC_HCLK_Div1);
    RCC_PCLK2Config(RCC_HCLK_Div1);

    SystemCoreClockUpdate();
}

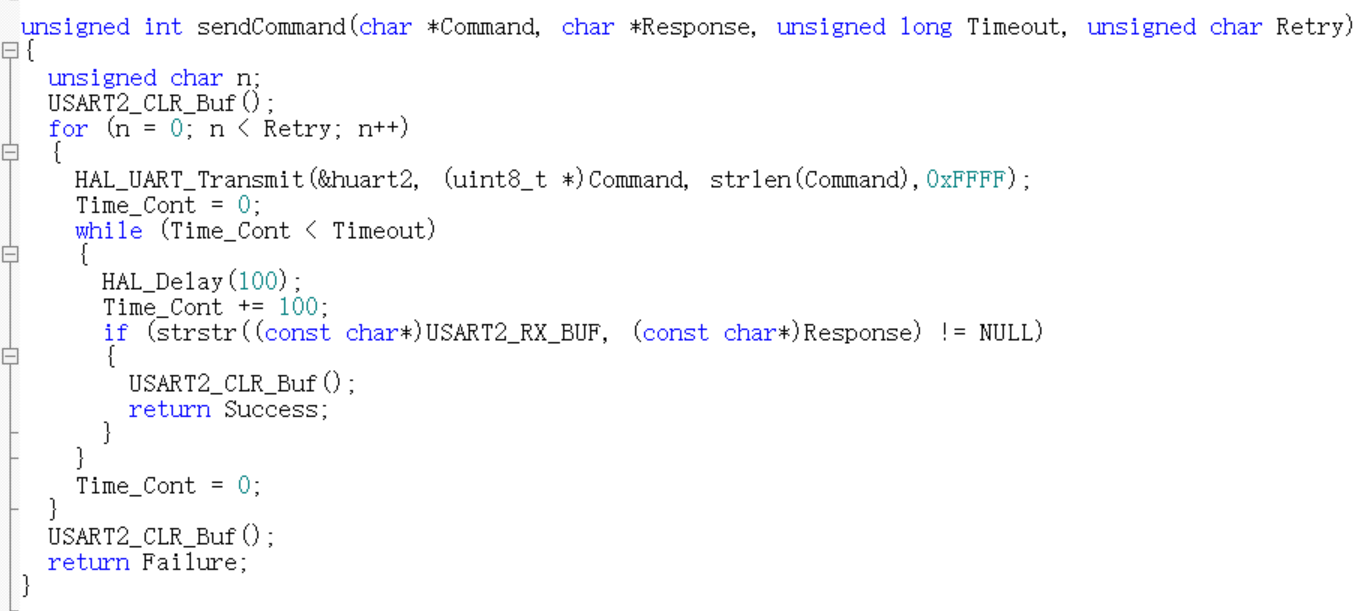

3. 发送AT命令函数转换

原HAL库代码：

signed int sendCommand(char *Command, char *Response, unsigned long Timeout, unsigned char Retry) {
    unsigned char n;
    USART2_CLR_Buf();

    for(n = 0; n < Retry; n++) {
        HAL_UART_Transmit(&huart2, (uint8_t *)Command, strlen(Command), 0xFFFF);
        Time_Cont = 0;

        while(Time_Cont < Timeout) {
            HAL_Delay(100);
            Time_Cont += 100;
            if(strstr((const char *)USART2_RX_BUF, (const char *)Response) != NULL) {
                USART2_CLR_Buf();
                return Success;
            }
        }
        Time_Cont = 0;
        USART2_CLR_Buf();
    }
    return Failure;
}

标准库代码：

signed int sendCommand(char *Command, char *Response, unsigned long Timeout, unsigned char Retry) {
    unsigned char n;
    USART2_CLR_Buf();

    for(n = 0; n < Retry; n++) {
        USART_SendData(USART2, (uint8_t *)Command, strlen(Command));
        Time_Cont = 0;

        while(Time_Cont < Timeout) {
            Delay(100); // 需要实现自己的Delay函数
            Time_Cont += 100;
            if(strstr((const char *)USART2_RX_BUF, (const char *)Response) != NULL) {
                USART2_CLR_Buf();
                return Success;
            }
        }
        Time_Cont = 0;
        USART2_CLR_Buf();
    }
    return Failure;
}

4. 完整的发送英文短信实现

#include "stm32f10x.h"
#include <string.h>

#define USART2_MAX_RECV_LEN 256
#define Success 0
#define Failure -1

uint8_t USART2_RX_BUF[USART2_MAX_RECV_LEN];
uint16_t point2 = 0;
uint32_t Time_Cont = 0;

void USART2_CLR_Buf(void) {
    memset(USART2_RX_BUF, 0, USART2_MAX_RECV_LEN);
    point2 = 0;
}

void USART2_Init(uint32_t baudrate) {
    GPIO_InitTypeDef GPIO_InitStructure;
    USART_InitTypeDef USART_InitStructure;
    NVIC_InitTypeDef NVIC_InitStructure;

    RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA | RCC_APB2Periph_AFIO, ENABLE);
    RCC_APB1PeriphClockCmd(RCC_APB1Periph_USART2, ENABLE);

    // USART2_TX -> PA2
    GPIO_InitStructure.GPIO_Pin = GPIO_Pin_2;
    GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;
    GPIO_Init(GPIOA, &GPIO_InitStructure);

    // USART2_RX -> PA3
    GPIO_InitStructure.GPIO_Pin = GPIO_Pin_3;
    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN_FLOATING;
    GPIO_Init(GPIOA, &GPIO_InitStructure);

    USART_InitStructure.USART_BaudRate = baudrate;
    USART_InitStructure.USART_WordLength = USART_WordLength_8b;
    USART_InitStructure.USART_StopBits = USART_StopBits_1;
    USART_InitStructure.USART_Parity = USART_Parity_No;
    USART_InitStructure.USART_HardwareFlowControl = USART_HardwareFlowControl_None;
    USART_InitStructure.USART_Mode = USART_Mode_Rx | USART_Mode_Tx;
    USART_Init(USART2, &USART_InitStructure);

    USART_ITConfig(USART2, USART_IT_RXNE, ENABLE);

    NVIC_InitStructure.NVIC_IRQChannel = USART2_IRQn;
    NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 0;
    NVIC_InitStructure.NVIC_IRQChannelSubPriority = 0;
    NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;
    NVIC_Init(&NVIC_InitStructure);

    USART_Cmd(USART2, ENABLE);
}

int sendSMS(char *phoneNumber, char *message) {
    char cmd[64];

    // 设置短信文本模式
    if(sendCommand("AT+CMGF=1\r\n", "OK", 2000, 3) != Success) {
        return Failure;
    }

    // 设置接收方号码
    sprintf(cmd, "AT+CMGS=\"%s\"\r\n", phoneNumber);
    if(sendCommand(cmd, ">", 2000, 3) != Success) {
        return Failure;
    }

    // 发送短信内容
    sprintf(cmd, "%s%c", message, 0x1A); // 0x1A是Ctrl+Z，表示短信结束
    if(sendCommand(cmd, "OK", 5000, 3) != Success) {
        return Failure;
    }

    return Success;
}

int main(void) {
    SystemClock_Config();
    USART2_Init(115200);

    while(1) {
        if(sendSMS("13800138000", "Hello from STM32!") == Success) {
            // 短信发送成功
            break;
        }
        Delay(5000); // 5秒后重试
    }

    while(1);
}

注意事项

1. 需要根据您的具体硬件连接修改GPIO引脚配置
2. Delay函数需要您自己实现，可以使用SysTick定时器
3. 确保AIR780E模块的波特率与代码中设置的波特率一致
4. 短信发送可能需要一定时间，请适当调整超时参数
5. 在实际应用中，建议添加更多的错误处理和重试机制

希望这些代码能帮助您实现通过AIR780E模块发送英文短信的功能。如果有任何问题，请随时提问。
