流水线中bitnami/kubectl镜像使用的问题

Question

#jenkins
#kubernetes
#pipeline

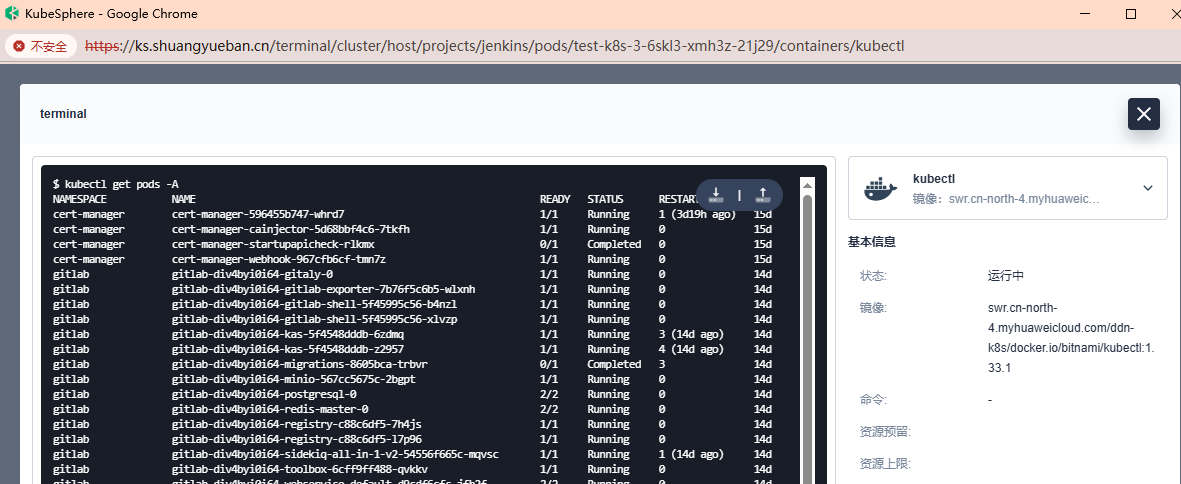

流水线卡在sh那里不动了，执行不了sh里面的命令，但是我通过终端进去容器内部执行都一切正常，是哪里出问题了，麻烦帮我看看

pipeline {
    agent {
        kubernetes {
            // 定义一个Pod模板
            yaml """
apiVersion: v1
kind: Pod
spec:
  serviceAccountName: jenkins-qygoydxwa9a
  containers:
  - name: jnlp
    image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/jenkins/inbound-agent:3309.v27b_9314fd1a_4-7
    tty: true
    env:
    - name: JENKINS_URL
      value: http://jenkins-qygoydxwa9a.jenkins.svc.cluster.local:8080/

  - name: kubectl
    image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/bitnami/kubectl:1.33.1
    command:
    - cat
    tty: true
"""
        }
    }
    stages {
        stage('部署到 Kubernetes') {
            steps {
                container('kubectl') {
                    // 2. 使用 withKubeConfig 并传入正确的凭据ID字符串
                    withKubeConfig(credentialsId: 'kubeconfig') {
                        sh 'kubectl version --client'
                        sh 'echo "--- Listing pods in all namespaces ---"'
                        sh 'kubectl get pods -A'
                    }
                }
            }
        }
    }
}

Running on test-k8s-2-j2d12-zb3mw-vnjh3 in /home/jenkins/agent/workspace/test-k8s
[Pipeline] {
[Pipeline] stage
[Pipeline] { (部署到 Kubernetes)
[Pipeline] container
[Pipeline] {
[Pipeline] withKubeConfig
[kubernetes-cli] creating missing workspace to write temporary kubeconfig
[Pipeline] {
[Pipeline] sh
process apparently never started in /home/jenkins/agent/workspace/test-k8s@tmp/durable-bd126789
(running Jenkins temporarily with -Dorg.jenkinsci.plugins.durabletask.BourneShellScript.LAUNCH_DIAGNOSTICS=true might make the problem clearer)
[Pipeline] }
[kubernetes-cli] kubectl configuration cleaned up
[Pipeline] // withKubeConfig
[Pipeline] }
[Pipeline] // container
[Pipeline] }
[Pipeline] // stage
[Pipeline] }
Agent test-k8s-2-j2d12-zb3mw-vnjh3 was deleted, but do not have a node body to cancel
[Pipeline] // node
[Pipeline] }
[Pipeline] // podTemplate
[Pipeline] End of Pipeline
ERROR: script returned exit code -2
Finished: FAILURE

Answer 1

让【宝码香车】来帮你解答，本回答参考DeepSeek编写，并整理提供。

如果还有疑问可以点击头像关注私信或评论。如果答案让您满意，请采纳、点赞、关注，非常感谢！

若您愿意支持，欢迎直接打赏，将不胜感激！


流水线中bitnami/kubectl镜像使用问题分析

根据您提供的信息，流水线在执行sh命令时卡住，但手动进入容器执行命令却正常。这个问题通常与容器环境配置或Jenkins执行环境有关。

问题原因分析

1. 容器命令配置问题：您使用了command: ['cat']和tty: true，这会导致容器启动后只运行cat命令等待输入，而不是保持运行状态。

1. Jenkins执行环境问题：sh命令无法启动，可能是由于容器没有正确配置shell环境或权限问题。

解决方案

方案1：修改容器配置

containers:
- name: kubectl
  image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/bitnami/kubectl:1.33.1
  command: ['sleep', 'infinity']
  tty: true

方案2：使用更完整的容器镜像

containers:
- name: kubectl
  image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/bitnami/kubectl:1.33.1
  command: ['/bin/bash', '-c', 'cat']
  tty: true

方案3：完整修复的Pipeline示例

pipeline {
    agent {
        kubernetes {
            yaml """
apiVersion: v1
kind: Pod
spec:
  serviceAccountName: jenkins-qygoydxwa9a
  containers:
  - name: jnlp
    image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/jenkins/inbound-agent:3309.v27b_9314fd1a_4-7
    tty: true
    env:
    - name: JENKINS_URL
      value: http://jenkins-qygoydxwa9a.jenkins.svc.cluster.local:8080/


  - name: kubectl
    image: swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/bitnami/kubectl:1.33.1
    command: ['sleep', 'infinity']
    tty: true
"""
        }
    }
    stages {
        stage('部署到 Kubernetes') {
            steps {
                container('kubectl') {
                    script {
                        withKubeConfig(credentialsId: 'kubeconfig') {
                            sh '''
                                kubectl version --client
                                echo "--- Listing pods in all namespaces ---"
                                kubectl get pods -A
                            '''
                        }
                    }
                }
            }
        }
    }
}

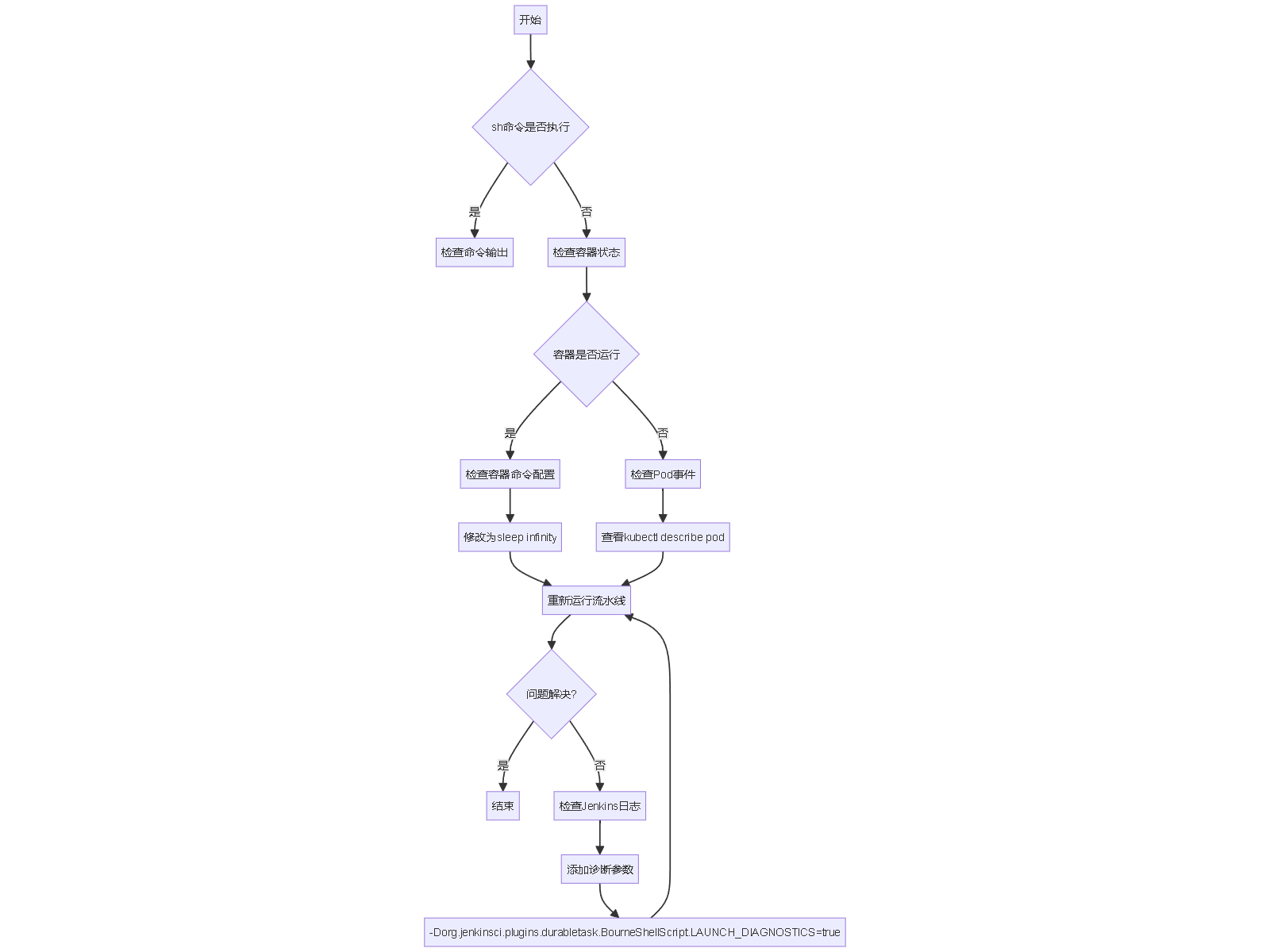

排查流程

其他建议

1. 检查Jenkins工作空间权限：

ls -la /home/jenkins/agent/workspace/

1. 尝试在Jenkins启动时添加诊断参数：

java -Dorg.jenkinsci.plugins.durabletask.BourneShellScript.LAUNCH_DIAGNOSTICS=true -jar jenkins.war

1. 检查kubectl容器中是否安装了bash：

kubectl exec -it <pod-name> -c kubectl -- which bash

如果问题仍然存在，请提供Jenkins的完整日志（包含诊断信息）以便进一步分析。
