STM32+SPI+DMA，数据传输经常出错

Question

​
#include "SPI2_DMA.h"
#include "CRC16.h"
#include "string.h"
#include "main.h"
#include "ODContent_short.h"
unsigned char hex1, hex2;
int crc;

extern union structsend                     send;                    //控制指令帧-发送的数据        tx_data[12]
extern union structrec                         rec;                    //控制指令帧-接收的数据        rx_data[12]
extern union structReadr                     readr;                //读寄存器帧-发送的数据        Read_register[6]
extern union structReadr_back            readrb;                //读寄存器帧-接收的数据        Read_register_back[4]
extern union structWriter                 writer;                //写寄存器帧-发送的数据        Write_register[8]
extern union structWriter_back        writerb;            //写寄存器帧-接收的数据        Write_register_back[6]

unsigned char temparr[14] = {0};
unsigned char tempu;


void SPI2_DMA_Configuration(void)
{
 // 1. 配置SPI2
  GPIO_InitTypeDef GPIO_InitStruct;
    SPI_InitTypeDef SPI_InitStruct;

    RCC_APB1PeriphClockCmd(RCC_APB1Periph_SPI2, ENABLE);
    RCC_AHB1PeriphClockCmd(RCC_AHB1Periph_GPIOB, ENABLE);

    GPIO_PinAFConfig(GPIOB, GPIO_PinSource13, GPIO_AF_SPI2);
    GPIO_PinAFConfig(GPIOB, GPIO_PinSource14, GPIO_AF_SPI2);
    GPIO_PinAFConfig(GPIOB, GPIO_PinSource15, GPIO_AF_SPI2);

    GPIO_InitStruct.GPIO_Pin = GPIO_Pin_13|GPIO_Pin_14|GPIO_Pin_15;
    GPIO_InitStruct.GPIO_Mode = GPIO_Mode_AF;
    GPIO_InitStruct.GPIO_Speed = GPIO_Speed_50MHz;
    GPIO_InitStruct.GPIO_OType = GPIO_OType_PP;
    GPIO_InitStruct.GPIO_PuPd  = GPIO_PuPd_DOWN;
    GPIO_Init(GPIOB, &GPIO_InitStruct);

    GPIO_InitStruct.GPIO_Pin = GPIO_Pin_12;
    GPIO_InitStruct.GPIO_Speed = GPIO_Speed_50MHz;
    GPIO_InitStruct.GPIO_Mode = GPIO_Mode_OUT;
    GPIO_Init(GPIOB, &GPIO_InitStruct);

    SPI2_SEL_DISABLE;

    SPI_InitStruct.SPI_Direction = SPI_Direction_2Lines_FullDuplex;
    SPI_InitStruct.SPI_Mode = SPI_Mode_Master;
    SPI_InitStruct.SPI_DataSize = SPI_DataSize_8b;
    SPI_InitStruct.SPI_CPOL = SPI_CPOL_High;                        //空闲为高电平
    SPI_InitStruct.SPI_CPHA = SPI_CPHA_2Edge;                        //第二个时钟沿开始采样数据
    SPI_InitStruct.SPI_NSS = SPI_NSS_Soft;
    SPI_InitStruct.SPI_BaudRatePrescaler = SPI_BaudRatePrescaler_64; //60/64
    SPI_InitStruct.SPI_FirstBit = SPI_FirstBit_MSB;
//    SPI_InitStruct.SPI_CRCPolynomial = 7;
    SPI_Init(SPI2, &SPI_InitStruct);

    SPI_Cmd(SPI2, ENABLE);


     // 中断结构体
    NVIC_InitTypeDef NVIC_InitStructure;
    // DMA结构体
    DMA_InitTypeDef DMA_InitStructure;
    /* 使能DMA时钟 */
    RCC_AHB1PeriphClockCmd(RCC_AHB1Periph_DMA1, ENABLE);
    /* 复位初始化DMA数据流 */
    DMA_DeInit(DMA1_Stream4);
    /* 确保DMA数据流复位完成 */
    while (DMA_GetCmdStatus(DMA1_Stream4) != DISABLE);

    /* 配置 DMA Stream */
    /* 通道0，数据流4 */
    DMA_InitStructure.DMA_Channel = DMA_Channel_0;
    /* 外设地址 */
    DMA_InitStructure.DMA_PeripheralBaseAddr = (uint32_t)&SPI2->DR;
    /* 内存地址(要传输的变量的指针) ,DMA存储器0地址*/
    DMA_InitStructure.DMA_Memory0BaseAddr = (uint32_t)send.tx_data;
    /* 方向：存储器到外设 */
    DMA_InitStructure.DMA_DIR = DMA_DIR_MemoryToPeripheral;
    /* 数据传输量 ,可设置为0， 实际发送时会重新设置*/
    DMA_InitStructure.DMA_BufferSize = (uint32_t)12;
    /* 外设非增量模式 */
    DMA_InitStructure.DMA_PeripheralInc = DMA_PeripheralInc_Disable;
    /* 存储器增量模式 */
    DMA_InitStructure.DMA_MemoryInc = DMA_MemoryInc_Enable;
    /* 外设数据长度:8位 */
    DMA_InitStructure.DMA_PeripheralDataSize = DMA_PeripheralDataSize_Byte;
    /* 内存数据长度:8位 */
    DMA_InitStructure.DMA_MemoryDataSize = DMA_MemoryDataSize_Byte;
    /* DMA模式：正常模式 */
    DMA_InitStructure.DMA_Mode = DMA_Mode_Normal;
    /* 优先级：高 */
    DMA_InitStructure.DMA_Priority = DMA_Priority_High;
    /* 禁用FIFO */
    DMA_InitStructure.DMA_FIFOMode = DMA_FIFOMode_Disable;
    DMA_InitStructure.DMA_FIFOThreshold = DMA_FIFOThreshold_1QuarterFull;
    /* 外设突发单次传输 */
    DMA_InitStructure.DMA_MemoryBurst = DMA_MemoryBurst_Single;
    /* 存储器突发单次传输 */
    DMA_InitStructure.DMA_PeripheralBurst = DMA_PeripheralBurst_Single;
    /* 初始化DMA Stream */
    DMA_Init(DMA1_Stream4, &DMA_InitStructure);
    /* 开启传输完成中断  */
    DMA_ITConfig(DMA1_Stream4,DMA_IT_TC,ENABLE);

    // 中断初始化
    /* DMA发送中断源 */
    NVIC_InitStructure.NVIC_IRQChannel = DMA1_Stream4_IRQn;
    /* 抢断优先级 */
    NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 0;
    /* 响应优先级 */
    NVIC_InitStructure.NVIC_IRQChannelSubPriority = 0;
    /* 使能外部中断通道 */
    NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;
    /* 配置NVIC */
    NVIC_Init(&NVIC_InitStructure);


    // 配置DMA1 Stream3通道0用于SPI2的接收
    DMA_InitTypeDef dmaRxInitStruct;
    dmaRxInitStruct.DMA_Channel = DMA_Channel_0;
    dmaRxInitStruct.DMA_PeripheralBaseAddr = (uint32_t)&SPI2->DR;
    dmaRxInitStruct.DMA_Memory0BaseAddr = (uint32_t)rec.rx_data;
    dmaRxInitStruct.DMA_DIR = DMA_DIR_PeripheralToMemory;
    dmaRxInitStruct.DMA_BufferSize = DATA_SIZE;
    dmaRxInitStruct.DMA_PeripheralInc = DMA_PeripheralInc_Disable;
    dmaRxInitStruct.DMA_MemoryInc = DMA_MemoryInc_Enable;
    dmaRxInitStruct.DMA_PeripheralDataSize = DMA_PeripheralDataSize_Byte;
    dmaRxInitStruct.DMA_MemoryDataSize = DMA_MemoryDataSize_Byte;
    dmaRxInitStruct.DMA_Mode = DMA_Mode_Normal;
    dmaRxInitStruct.DMA_Priority = DMA_Priority_High;
    dmaRxInitStruct.DMA_FIFOMode = DMA_FIFOMode_Disable;
    dmaRxInitStruct.DMA_FIFOThreshold = DMA_FIFOThreshold_HalfFull;
    dmaRxInitStruct.DMA_MemoryBurst = DMA_MemoryBurst_Single;
    dmaRxInitStruct.DMA_PeripheralBurst = DMA_PeripheralBurst_Single;
    DMA_Init(DMA1_Stream3, &dmaRxInitStruct);

    // 启用SPI2的DMA发送和接收
    SPI_I2S_DMACmd(SPI2, SPI_I2S_DMAReq_Tx, ENABLE);
    SPI_I2S_DMACmd(SPI2, SPI_I2S_DMAReq_Rx, ENABLE);

    // 启用DMA1 Stream4和Stream3
//    DMA_Cmd(DMA1_Stream4, ENABLE);
//    DMA_Cmd(DMA1_Stream3, ENABLE);
}


void DMA1_Stream4_IRQHandler(void)
{
    // DMA 发送完成
    if(DMA_GetITStatus(DMA1_Stream4, DMA_IT_TCIF4))
    {
        // 清除DMA发送完成标志
        DMA_ClearITPendingBit(DMA1_Stream4, DMA_IT_TCIF4);
        // 片选拉高，数据发送完毕
            memset(send.tx_data,0,12);
            DMA_Cmd(DMA1_Stream4, DISABLE);
            while(SPI_I2S_GetFlagStatus(SPI2,SPI_I2S_FLAG_TXE) == RESET);
            while(SPI_I2S_GetFlagStatus(SPI2,SPI_I2S_FLAG_BSY) == 1);    //保证发送接收数据完整

            SPI2_SEL_DISABLE;
    }
}

//开启一次DMA传输
void MYDMA_TX_Enable(DMA_Stream_TypeDef*DMA_CHx, u32 arr,int len)
{
    DMA_Cmd(DMA_CHx, DISABLE );  //关闭SPI TX DMA1 所指示的通道
    DMA_CHx->M0AR=(u32)arr;
     DMA_SetCurrDataCounter(DMA_CHx,len);//DMA通道的DMA缓存的大小
     DMA_Cmd(DMA_CHx, ENABLE);  //使能SPI TX DMA1 所指示的通道
}

//开启一次DMA传输
void MYDMA_RX_Enable(DMA_Stream_TypeDef*DMA_CHx,int len)
{
    DMA_Cmd(DMA_CHx, DISABLE );  //关闭SPI RX DMA1 所指示的通道
    DMA_CHx->M0AR=(u32)temparr;
     DMA_SetCurrDataCounter(DMA_CHx,len);//DMA通道的DMA缓存的大小
     DMA_Cmd(DMA_CHx, ENABLE);  //使能SPI RX DMA1 所指示的通道
}

uint8_t SPI2_ReadWriteByte(unsigned char data)
{
    while (SPI_I2S_GetFlagStatus(SPI2, SPI_I2S_FLAG_TXE) == RESET);    // 等待发送区空
    SPI_I2S_SendData(SPI2, data);                                 // 通过外设SPI1发送一个byte数据
    while (SPI_I2S_GetFlagStatus(SPI2, SPI_I2S_FLAG_RXNE) == RESET);// 等待接收完一个byte
    return SPI_I2S_ReceiveData(SPI2);                                 // 返回通过SPIx最近接收的数据
}

/////////////////////////////////////////////
在中断中不断调用此函数,中断1ms一次
////////////////////////////////////////////
void SPI_DMA_WriteReadByte(void)
{
    crc = do_crc(send.tx_data, 10);
    send.sendtype.crc_H = (unsigned char)(crc>>8);
    send.sendtype.crc_L = (unsigned char)(crc&0xff);

//    发送12B数据
    SPI2_SEL_ENABLE;//拉低片选        （放在此处为了节省0.5us的时间）
    SPI_I2S_DMACmd(SPI2,SPI_I2S_DMAReq_Tx, ENABLE);//SPI 发送DMA使能
    SPI_I2S_DMACmd(SPI2,SPI_I2S_DMAReq_Rx, ENABLE);//SPI 接收DMA使能
    MYDMA_TX_Enable(DMA1_Stream4,(u32)send.tx_data,12);//发送
    MYDMA_RX_Enable(DMA1_Stream3,12);//接收
    if(DMA_GetITStatus(DMA1_Stream4, DMA_IT_TCIF4) == RESET)
    {
        DMA_ClearFlag(DMA1_Stream4,DMA_FLAG_TCIF4);
    }
    while(SPI_I2S_GetFlagStatus(SPI2,SPI_I2S_FLAG_TXE) == RESET);
    while(SPI_I2S_GetFlagStatus(SPI2,SPI_I2S_FLAG_BSY) == 1);    //保证发送接收数据完整

//接收16B数据
#if 1
    tempu = SPI2_ReadWriteByte(0x00);
    tempu = SPI2_ReadWriteByte(0x00);
    tempu = SPI2_ReadWriteByte(0x00);
    tempu = SPI2_ReadWriteByte(0x00);
    for(int i=0;i<12;i++)
        rec.rx_data[i] = SPI2_ReadWriteByte(0x00);

#endif

    SPI2_SEL_DISABLE;//拉高片选
}

​

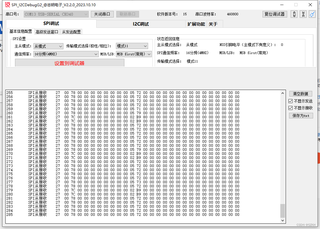

SPI从机接收的数据如下:
​​

.

有规律的错误,不知道是什么原因造成的

Answer 1

【相关推荐】

• 文章：STM32的SPI采用DMA方式传输测试 中也许有你想要的答案，请看下吧
• 除此之外, 这篇博客: 【STM32使用SPI+DMA提高传输速率】中的 一、SPI通信 部分也许能够解决你的问题, 你可以仔细阅读以下内容或跳转源博客中阅读:


  • 关于原理这里就不过多赘述了，这位博主写的十分详细，大家可以参考。


  单片机外设篇——SPI协议

  我这里直接附一份代码：

void spi_init(void)
{
	SPI_DMA_Config();
  SPI_InitTypeDef  SPI_InitStructure;
  /* 使能SPI 时钟 */
  RCC_APB1PeriphClockCmd(LCD_RCC_APBPeriph_SPI ,ENABLE);

  /* SPI配置 */
  SPI_InitStructure.SPI_Direction = SPI_Direction_2Lines_FullDuplex;
  SPI_InitStructure.SPI_Mode = SPI_Mode_Master;
  SPI_InitStructure.SPI_DataSize = SPI_DataSize_8b;
  SPI_InitStructure.SPI_CPOL = SPI_CPOL_High;
  SPI_InitStructure.SPI_CPHA = SPI_CPHA_2Edge;
  SPI_InitStructure.SPI_NSS = SPI_NSS_Soft;
  SPI_InitStructure.SPI_BaudRatePrescaler = SPI_BaudRatePrescaler_2;
  SPI_InitStructure.SPI_FirstBit = SPI_FirstBit_MSB;
  SPI_InitStructure.SPI_CRCPolynomial = 7;
  SPI_Init(LCD_SPI, &SPI_InitStructure);

	SPI2->CR2 |= 1<<1  ;	        //发送缓冲区DMA使能
	SPI2->CR2 |= 1<<0  ;	        //接收缓冲区DMA使能

  /* 使能SPI  */
  SPI_Cmd(LCD_SPI, ENABLE);

  SPI_CS(0);			//禁止片选
}

如果你已经解决了该问题, 非常希望你能够分享一下解决方案, 写成博客, 将相关链接放在评论区, 以帮助更多的人 ^-^
