Modelsim仿真ERROR

Question

Modelsim仿真突然报错，重装软件没有解决错误，同一套工程在别的电脑上可以正常仿真使用。

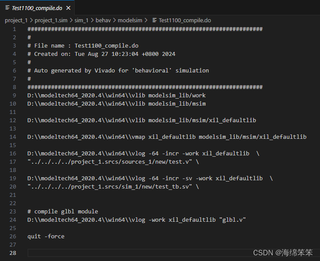

仿真时编译能通过（compile），但是执行到仿真步骤会失败（Simulate）。

报错提示：

ERROR ApplyCurrentColumnConfiguration config_name Default not found

Default Column Data

name AllColumns - name du duType category accTyp pdName covOpt total cvgPnt dtveHit dtveMis dtvePnt dtveGrph asrtCnt asrtHit asrtMis asrtPnt asrtGrph stmt hits misses stmtperc stmtgraph branches bhits bmiss bperc bgraph conds condhits condmiss condperc condgraph exprs exprhits exprmiss exprperc exprgraph toggles toghits togmiss togperc toggraph states statehits statemiss stateperc stategraph transitions transhits transmiss transperc transgraph fecconds feccondhits feccondmiss feccondperc feccondgraph fecexprs fecexprhits fecexprmiss fecexprperc fecexprgraph

Column Data

name AllColumns - name du duType category accTyp pdName covOpt total cvgPnt dtveHit dtveMis dtvePnt dtveGrph asrtCnt asrtHit asrtMis asrtPnt asrtGrph stmt hits misses stmtperc stmtgraph branches bhits bmiss bperc bgraph conds condhits condmiss condperc condgraph exprs exprhits exprmiss exprperc exprgraph toggles toghits togmiss togperc toggraph states statehits statemiss stateperc stategraph transitions transhits transmiss transperc transgraph fecconds feccondhits feccondmiss feccondperc feccondgraph fecexprs fecexprhits fecexprmiss fecexprperc fecexprgraph

**** Error: LoadCompleteQ cmd: Transcript::ViewSimPanes sim

**** can't set "CurrentColConfigName": can't read "tmp_array(Default)": no such element in array

can't set "CurrentColConfigName": can't read "tmp_array(Default)": no such element in array

while executing

"Structure::CreateWindow $dataset_name"

(procedure "Transcript::ViewSimPanes" line 28)

invoked from within

"Transcript::ViewSimPanes sim"

("eval" body line 1)

invoked from within

"eval $p $tankNamespace "

1

1

.main_pane.wave.interior.cs.body.pw.wf

** Error: can't rename to "::.main_pane.structure.interior.cs.body.struct": command already exists

while executing

"$vsimPriv(windowmgr) ShowWindow $windowobj"

(procedure "Structure::CreateWindow" line 23)

invoked from within

"Structure::CreateWindow $vsimPriv(SimDatasetName)"

(procedure "::vsimcmd::view_structure" line 8)

invoked from within

"::vsimcmd::view_structure"

("eval" body line 1)

invoked from within

"eval [linsert [array get option] 0 $cmd]"

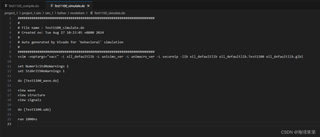

Error in macro ./Test1100_simulate.do line 17

can't rename to "::.main_pane.structure.interior.cs.body.struct": command already exists

while executing

"$vsimPriv(windowmgr) ShowWindow $windowobj"

(procedure "Structure::CreateWindow" line 23)

invoked from within

"Structure::CreateWindow $vsimPriv(SimDatasetName)"

(procedure "::vsimcmd::view_structure" line 8)

invoked from within

"::vsimcmd::view_structure"

("eval" body line 1)

invoked from within

"eval [linsert [array get option] 0 $cmd]"

while executing

"view structure"

Answer 1

以下回复参考：皆我百晓生、券券喵儿等免费微信小程序作答:

这个问题可能是由于Modelsim软件的某些设置或文件损坏导致的。你可以尝试以下方法来解决这个问题：

1. 重置Modelsim的配置文件：关闭Modelsim，然后删除Modelsim的配置文件夹。通常，这个文件夹位于用户的主目录下，名为.modelsim。删除这个文件夹后，重新启动Modelsim，它会自动创建一个新的配置文件夹。

2. 检查工程文件：确保你的工程文件没有损坏或缺失关键文件。重新导入工程并重新编译，看看问题是否仍然存在。

3. 更新Modelsim：确保你使用的是最新版本的Modelsim。有时候，软件的旧版本可能会导致一些问题。访问Modelsim的官方网站，下载并安装最新版本。

4. 重新安装Modelsim：如果以上方法都无法解决问题，你可以尝试卸载Modelsim，然后重新安装。在重新安装之前，确保彻底清理所有相关文件和注册表项。

希望这些建议能帮助你解决问题。如果问题仍然存在，建议你联系Modelsim的技术支持寻求帮助。
