安卓开发摄像头预览出现问题

Question

安卓开发摄像头预览时出现问题
在gpt上询问调用textureView类实现摄像头预览在界面上，结果代码显示不全，不知道后面该怎么写

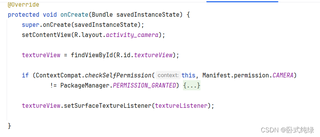

这是oncreate的主函数

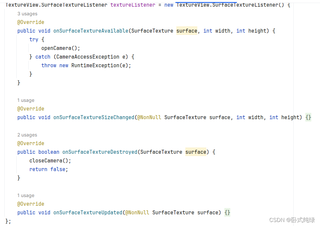

textureView的监听方法

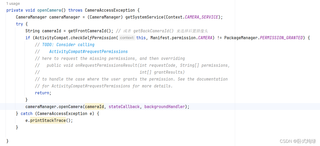

打开相机的方法

获取前置相机ID以及状态返回函数

Answer 1

引自免费微信小程序：皆我百晓生

在Android开发中，使用TextureView显示摄像头预览是一个常见的需求。根据您提供的部分代码，我可以帮您补全并解释整个流程。这里有一个完整的示例，包括了打开相机、获取前后摄像头ID、创建预览会话和关闭相机等功能。

首先，在您的activity_camera.xml布局文件中添加一个TextureView组件：

<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <TextureView
        android:id="@+id/textureView"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

</androidx.constraintlayout.widget.ConstraintLayout>

然后，在您的Activity中（例如MainActivity.java）实现以下代码：

import android.Manifest;
import android.content.pm.PackageManager;
import android.hardware.camera2.CameraAccessException;
import android.hardware.camera2.CameraCaptureSession;
import android.hardware.camera2.CameraDevice;
import android.hardware.camera2.CameraManager;
import android.hardware.camera2.CaptureRequest;
import android.hardware.camera2.params.StreamConfigurationMap;
import android.os.Bundle;
import android.os.Handler;
import android.os.HandlerThread;
import android.util.Log;
import android.view.Surface;
import android.widget.Toast;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.app.ActivityCompat;
import androidx.core.content.ContextCompat;

import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;

public class MainActivity extends AppCompatActivity {

    private static final String TAG = "MainActivity";
    private TextureView textureView;
    private Handler backgroundHandler;
    private HandlerThread backgroundThread;
    private CameraDevice cameraDevice;
    private CameraCaptureSession cameraCaptureSession;
    private Surface previewSurface;
    private String cameraId;
    private ExecutorService executorService;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_camera);

        textureView = findViewById(R.id.textureView);
        textureView.setSurfaceTextureListener(textureListener);

        if (ContextCompat.checkSelfPermission(this, Manifest.permission.CAMERA)
                != PackageManager.PERMISSION_GRANTED) {
            // Request camera permission
            ActivityCompat.requestPermissions(this,
                    new String[]{Manifest.permission.CAMERA},
                    REQUEST_CAMERA_PERMISSION);
        } else {
            openCamera();
        }
    }

    private final TextureView.SurfaceTextureListener textureListener = new TextureView.SurfaceTextureListener() {
        @Override
        public void onSurfaceTextureAvailable(SurfaceTexture surface, int width, int height) {
            createCameraPreviewSession(surface);
        }

        @Override
        public void onSurfaceTextureSizeChanged(SurfaceTexture surface, int width, int height) {
            // Ignored since size changing is handled by onSurfaceTextureAvailable()
        }

        @Override
        public boolean onSurfaceTextureDestroyed(SurfaceTexture surface) {
            return true;
        }

        @Override
        public void onSurfaceTextureUpdated(SurfaceTexture surface) {
            // Ignored
        }
    };

    private void openCamera() {
        CameraManager cameraManager = (CameraManager) getSystemService(Context.CAMERA_SERVICE);
        try {
            cameraId = getFrontCameraId();
            if (cameraId == null) {
                Toast.makeText(this, "No front camera found", Toast.LENGTH_SHORT).show();
                finish();
                return;
            }
            cameraManager.openCamera(cameraId, stateCallback, backgroundHandler);
        } catch (CameraAccessException e) {
            Log.e(TAG, "Error opening camera", e);
        }
    }

    private String getFrontCameraId() {
        CameraManager cameraManager = (CameraManager) getSystemService(Context.CAMERA_SERVICE);
        try {
            String[] cameraIds = cameraManager.getCameraIdList();
            for (String id : cameraIds) {
                CameraCharacteristics characteristics = cameraManager.getCameraCharacteristics(id);
                int lensFacing = characteristics.get(CameraCharacteristics.LENS_FACING);
                if (lensFacing == CameraCharacteristics.LENS_FACING_FRONT) {
                    return id;
                }
            }
        } catch (CameraAccessException e) {
            Log.e(TAG, "Error getting camera characteristics", e);
        }
        return null;
    }

    private void closeCamera() {
        if (cameraDevice != null) {
            cameraDevice.close();
            cameraDevice = null;
        }
        if (executorService != null) {
            executorService.shutdown();
            executorService = null;
        }
    }

    private void createCameraPreviewSession(Surface surface) {
        if (null == cameraDevice || null == surface) {
            return;
        }

        try {
            SurfaceTexture texture = textureView.getSurfaceTexture();
            assert texture != null;

            texture.setDefaultBufferSize(previewSize.getWidth(), previewSize.getHeight());
            previewSurface = new Surface(texture);

            List<Surface> surfaces = new ArrayList<>();
            surfaces.add(previewSurface);
            surfaces.add(new Surface(textureView.getSurface()));

            cameraDevice.createCaptureSession(surfaces, new CameraCaptureSession.StateCallback() {
                @Override
                public void onConfigured(@NonNull CameraCaptureSession session) {
                    cameraCaptureSession = session;
                    updatePreview();
                }

                @Override
                public void onConfigureFailed(@NonNull CameraCaptureSession session) {
                    Log.e(TAG, "Failed to configure camera");
                }
            }, backgroundHandler);
        } catch (CameraAccessException e) {
            Log.e(TAG, "Cannot create camera preview session", e);
        }
    }

    private void updatePreview() {
        if (null == cameraDevice) {
            return;
        }
        CaptureRequest.Builder captureBuilder = cameraDevice.createCaptureRequest(CameraDevice.TEMPLATE_PREVIEW);
        captureBuilder.addTarget(previewSurface);

        cameraCaptureSession.setRepeatingRequest(captureBuilder.build(), null, backgroundHandler);
    }

    private final CameraDevice.StateCallback stateCallback = new CameraDevice.StateCallback() {
        @Override
        public void onOpened(@NonNull CameraDevice camera) {
            cameraDevice = camera;
            startBackgroundThread();
            createCameraPreviewSession(textureView.getSurface());
        }

        @Override
        public void onDisconnected(@NonNull CameraDevice camera) {
            cameraDevice.close();
            cameraDevice = null;
        }

        @Override
        public void onError(@NonNull CameraDevice camera, int error) {
            cameraDevice.close();
            cameraDevice = null;
        }
    };

    private void startBackgroundThread() {
        backgroundThread = new HandlerThread("CameraBackground");
        backgroundThread.start();
        backgroundHandler = new Handler(backgroundThread.getLooper());
        executorService = Executors.newSingleThreadExecutor();
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        closeCamera();
        stopBackgroundThread();
    }

    private void stopBackgroundThread() {
        if (backgroundThread != null) {
            backgroundThread.quitSafely();
            try {
                backgroundThread.join();
                backgroundThread = null;
            } catch (InterruptedException e) {
                Log.d(TAG, "Interrupted while waiting for background thread to terminate.");
            }
        }
        backgroundHandler = null;
    }

    @Override
    public void onRequestPermissionsResult(int requestCode, @NonNull String[] permissions, @NonNull int[] grantResults) {
        if (requestCode == REQUEST_CAMERA_PERMISSION) {
            if (grantResults.length > 0 && grantResults[0] == PackageManager.PERMISSION_GRANTED) {
                openCamera();
            } else {
                Toast.makeText(this, "Permission denied for camera", Toast.LENGTH_SHORT).show();
                finish();
            }
        }
    }
}

在这个例子中，我们实现了以下几个关键功能：

1. 在onCreate()中初始化TextureView并检查权限。
2. 使用textureListener处理Surface的变化。
3. getFrontCameraId()方法用于获取可用的前置摄像头ID。
4. openCamera()和closeCamera()方法分别用于打开和关闭相机设备。
5. createCameraPreviewSession()用于设置预览会话，并将Surface绑定到预览和TextureView。
6. updatePreview()用于更新预览请求。
7. stateCallback处理相机设备的状态变化，如打开、断开连接和错误。
8. startBackgroundThread()和stopBackgroundThread()用于管理后台线程，确保操作在正确的线程上执行。

注意：这个示例仅展示了前置摄像头的预览。如果您想切换到后置摄像头，只需在openCamera()方法中替换getFrontCameraId()为getBackCameraId()即可。

另外，别忘了在AndroidManifest.xml中添加以下权限：

<uses-permission android:name="android.permission.CAMERA"/>

确保运行此应用的设备具有合适的权限才能访问摄像头。
