unityshader效果错误

Question

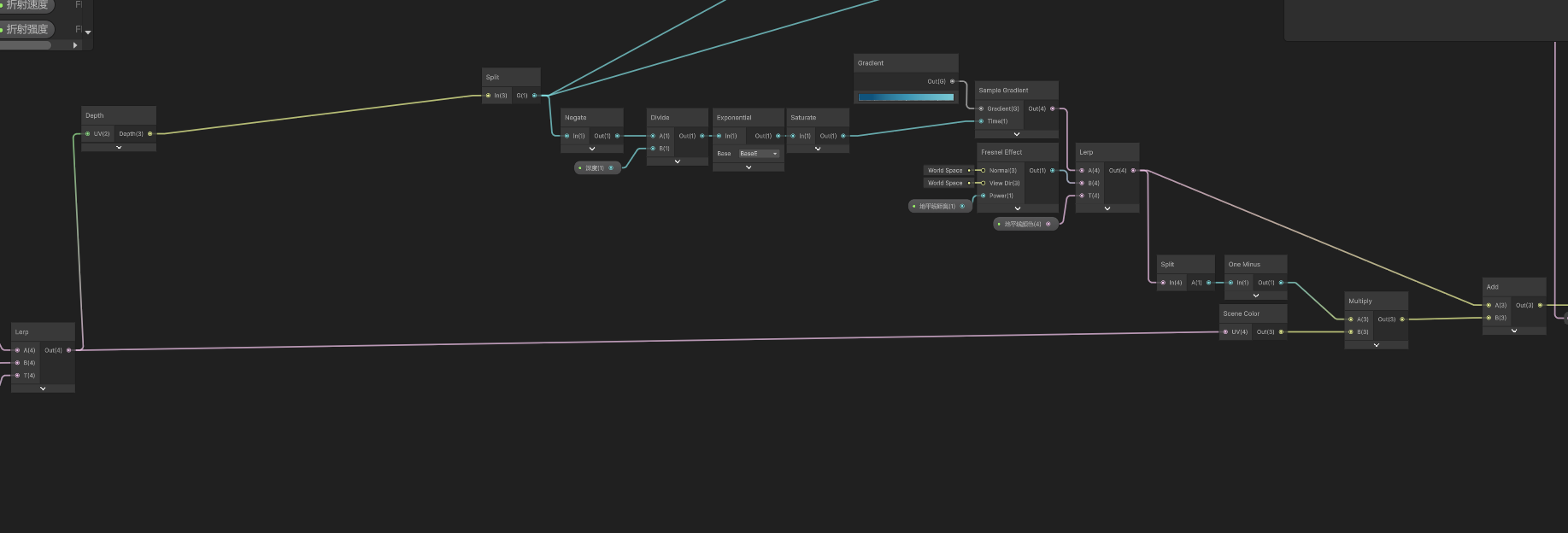

第一份是正确的效果，是用shadergraph做的获取水深材质，shadergraph节点如下

第二个是错误的效果，推测是采样贴图的问题，但折腾了两天两夜也没找到哪的问题

以下是代码部分，感谢大家帮助了qwq

Shader "Game/Water"
{
    Properties
    {
        [HideInInspector]
        _Gradient("Gradient",2D) = "black"{}
        _Depth("Depth",Range(0.001,100)) = 4
        _HorizonDistance("HorizonDistance",float) = 10
        _HorizonColor("HorizonColor",Color) = (0.5176471,0.4509804,0.5960785,0)
        _RefractionScale("RefractionScale",float) = 0.5
        _RefractionSpeed("RefractionSpeed",float) = 0.05
        _RefractionStrength("RefractionStrength",float) = 0.1
        _FoamColor("FoamColor",Color) = (0.6588235,0.9019608,0.8117647,0.8)
        _FoamDepth("FoamDepth",float) = 3
        _FoamSpeed("FoamSpeed",float) = 0.02
        _FoamOffset("FoamOffset",float) = 100
        _FoamScale("FoamScale",float) = 0.4
        _FoamSeed("FoamSeed",float) = 0
    }
    SubShader
    {
        Tags { "RenderType"="Transparent"
                "RenderPipeline"="UniversalRenderPipeline" }

        LOD 100
        Pass
        {

            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #include"UnityCG.cginc"

            float _Depth;
            float _HorizonDistance;
            float4 _HorizonColor;
            float _RefractionScale;
            float _RefractionSpeed;
            float _RefractionStrength;
            float4 _FoamColor;
            float _FoamDepth;
            float _FoamSpeed;
            float _FoamOffset;
            float _FoamScale;
            float _FoamSeed;
            sampler2D _Gradient;
            float4 _Gradient_TexelSize;

            uniform sampler2D _CameraDepthTexture;


            struct VertexInput
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct VertexOutput
            {
                float4 vertex : SV_POSITION;
                float2 uv : TEXCOORD0;

                float4 ScreenPos : TEXCOORD1;
                float4 WorldPos : TEXCOORD2;
            };

            float GetSceneDepth_Eye(VertexOutput i , float2 uv)
            {
                float2 screenUV = uv;
                return LinearEyeDepth(tex2D(_CameraDepthTexture,screenUV));
            }

            float4 GetScreenPos_Default(VertexOutput i)
            {
                return float4(i.ScreenPos.xy / i.ScreenPos.w,0,0);
            }

            float3 GetViewVectorInv_World(VertexOutput i)
            {
                return i.WorldPos - _WorldSpaceCameraPos;
            }

            float4 GetScreenPos_Raw(VertexOutput i)
            {
                return i.ScreenPos;
            }

            float2 GetScaleUV(float2 uv)
            {
                float2 scaleUV;
                scaleUV = uv * float2(
                    length(unity_ObjectToWorld[0].xyz),
                    length(unity_ObjectToWorld[2].xyz)
                    );
                return scaleUV;
            }

            float2 GradientNoiseDir(float2 p)
            {
                p = p % 289;
                float x = (34 * p.x + 1) * p.x % 289 + p.y;
                x = (34 * x + 1) * x % 289;
                x = frac(x / 41) * 2 - 1;
                return normalize(float2(x - floor(x + 0.5), abs(x) - 0.5));
            }

            float GetGradientNoise(float2 UV, float Scale)
            {
                float2 ip = floor(UV * Scale);
                float2 fp = frac(UV * Scale);
                float d00 = dot(GradientNoiseDir(ip), fp);
                float d01 = dot(GradientNoiseDir(ip + float2(0, 1)), fp - float2(0, 1));
                float d10 = dot(GradientNoiseDir(ip + float2(1, 0)), fp - float2(1, 0));
                float d11 = dot(GradientNoiseDir(ip + float2(1, 1)), fp - float2(1, 1));
                fp = fp * fp * fp * (fp * (fp * 6 - 15) + 10);
                return lerp(lerp(d00, d01, fp.y), lerp(d10, d11, fp.y), fp.x) + 0.5;
            }

            float4 GetRefractionUV(VertexOutput i)
            {
                float2 uv = GetScaleUV(i.uv);
                uv *= _RefractionScale;
                uv += _RefractionSpeed * _Time;
                float GradientNoise = GetGradientNoise(uv,20);
                GradientNoise = GradientNoise * 2 - 1;
                GradientNoise *= _RefractionStrength;
                return GetScreenPos_Default(i) + GradientNoise;
            }
            float3 GetDepthWorld(VertexOutput i , float2 uv)
            {
                float3 DepthWorld = ( i.WorldPos ) - ( _WorldSpaceCameraPos + ( (GetViewVectorInv_World(i) / GetScreenPos_Raw(i).w) * GetSceneDepth_Eye(i,uv) ) );
                return DepthWorld;
            }
            float GetDepth(VertexOutput i , float2 uv)
            {
                float Depth = saturate(exp( - GetDepthWorld(i,uv).y / _Depth ));
                return Depth;
            }

            float4 GetRefraction(VertexOutput i)
            {
                float4 RefractionUV = GetRefractionUV(i);
                float4 GetScreenPos = GetScreenPos_Default(i);
                float BranchPre = sign(GetDepthWorld(i,RefractionUV).y) / 0.5 + 0.5;
                return lerp(GetScreenPos,lerp(GetScreenPos,RefractionUV,BranchPre),GetDepth(i,RefractionUV)).y;
            }

            float4 GetGradientColor(float Time)
            {
                float4 color = tex2D(_Gradient,float2(Time ,0.25));
                return color;
            }

            VertexOutput vert(VertexInput v)
            {
                VertexOutput o;
                o.WorldPos = mul(unity_ObjectToWorld, v.vertex);
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.ScreenPos = ComputeScreenPos(o.vertex);
                o.uv = v.uv;
                return o;
            }

            float4 frag(VertexOutput i) : SV_Target
            {
                return GetDepth(i,GetRefraction(i));
            }

            ENDCG
        }
    }
}

Answer 1

让【宝码香车】来帮您解答，本回答参考DeepSeek编写，并整理提供。

如果答案让您满意，请采纳、点赞、关注，非常感谢！
.
每日一句正能量，让它带给您好心情：内心的晴朗，能驱散所有阴霾。
.

根据您提供的Shader代码和问题描述，我分析可能存在以下几个问题：

主要问题分析

1. 深度采样问题：

• 在GetSceneDepth_Eye函数中，直接使用tex2D采样深度纹理可能不正确，应该使用SAMPLE_DEPTH_TEXTURE宏
• 缺少对深度纹理的声明（UNITY_DECLARE_DEPTH_TEXTURE）

1. 折射UV计算问题：

• GetRefractionUV函数返回的是float4，但在GetRefraction中被当作float2使用
• 折射计算逻辑可能存在问题

1. 渲染管线兼容性：

• 标签中声明了URP管线，但代码使用的是CG而不是HLSL

修改建议

Shader "Game/Water"
{
    Properties
    {
        [HideInInspector] _Gradient("Gradient",2D) = "black"{}
        _Depth("Depth",Range(0.001,100)) = 4
        // 其他属性保持不变...
    }
    SubShader
    {
        Tags {
            "RenderType"="Transparent"
            "RenderPipeline"="UniversalRenderPipeline"
            "Queue"="Transparent"
        }

        Pass
        {
            HLSLPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/DeclareDepthTexture.hlsl"


            // 属性声明...
            TEXTURE2D(_Gradient);
            SAMPLER(sampler_Gradient);

            struct VertexInput
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };


            struct VertexOutput
            {
                float4 vertex : SV_POSITION;
                float2 uv : TEXCOORD0;
                float4 ScreenPos : TEXCOORD1;
                float3 WorldPos : TEXCOORD2;
            };


            float GetSceneDepth_Eye(VertexOutput i, float2 uv)
            {
                float2 screenUV = uv;
                return LinearEyeDepth(SampleSceneDepth(screenUV), _ZBufferParams);
            }


            // 其他函数修改为使用URP的采样方式...


            VertexOutput vert(VertexInput v)
            {
                VertexOutput o;
                o.WorldPos = TransformObjectToWorld(v.vertex.xyz);
                o.vertex = TransformWorldToHClip(o.WorldPos);
                o.ScreenPos = ComputeScreenPos(o.vertex);
                o.uv = v.uv;
                return o;
            }


            half4 frag(VertexOutput i) : SV_Target
            {
                // 修改后的深度计算逻辑
                float2 screenUV = i.ScreenPos.xy / i.ScreenPos.w;
                float sceneDepth = GetSceneDepth_Eye(i, screenUV);
                float surfaceDepth = i.ScreenPos.w;
                float waterDepth = sceneDepth - surfaceDepth;

                // 应用深度和颜色渐变
                float depthFactor = saturate(waterDepth / _Depth);
                half4 color = SAMPLE_TEXTURE2D(_Gradient, sampler_Gradient, float2(depthFactor, 0.25));

                return color;
            }
            ENDHLSL
        }
    }
}

其他建议

1. 调试步骤：

• 先单独输出深度值（sceneDepth）查看是否正确
• 再单独输出水面深度（waterDepth）
• 最后应用颜色渐变

1. 常见问题排查：

• 确保相机开启了深度纹理（Camera.main.depthTextureMode = DepthTextureMode.Depth;）
• 检查渐变纹理的导入设置（应该是Clamp模式）
• 确保水面物体的渲染队列正确（Transparent）

1. 性能优化：

• 考虑使用URP的Shader Graph重写，更直观且易于调试
• 减少复杂噪声计算，可以预计算噪声纹理

建议先按照URP标准修改Shader结构，确保基础深度计算正确后再添加折射等效果。如果仍有问题，可以提供更具体的错误表现（如截图对比）以便进一步分析。
