plot_tree模块绘图无法显示分类名(但有输入分类名参数)

Question

提问::plot_tree模块绘图无法显示分类名,但是已经加上了class_names参数

import numpy as np
import pandas as pd
from sklearn.model_selection import GridSearchCV # 通过网格方式来搜索参数
from sklearn.tree import DecisionTreeClassifier as dtc
import matplotlib.pyplot as plt # 可视化
from matplotlib import rcParams # 图大小
from sklearn.tree import plot_tree # 树图
from termcolor import colored as cl # 文本自定义

data = pd.read_csv("class_weathering_chemical.csv")#导入数据集
features = data.columns[1:15]
X = data[features]#设置待估Xy
y = data[data.columns[15:17]]

# 设置需要搜索的参数值，在这里寻找最优的决策树深度
parameters = {'max_depth':[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15]}
model = dtc()  # 注意：在这里不用指定参数
# GridSearchCV
clf = GridSearchCV(model, parameters, cv=5)
clf.fit(X, y)
# 输出最好的参数以及对应的准确率
print ("best score is: %.4f"%clf.best_score_, "  best param: ",clf.best_params_,)

model = dtc(max_depth=3,criterion = 'entropy')#一层无法可视化,于是构建两层
model = model.fit(X, y)

rcParams['figure.figsize'] = (5, 5)
target_names = ['rich_k','PbBa']
from sklearn.tree import plot_tree # 树图
plot_tree(
    model,
    feature_names = features,
    class_names= target_names,
    filled=True,
    rounded = True
)
plt.savefig('tree_visualization.png')

运行出来的图像并没有显示分类名

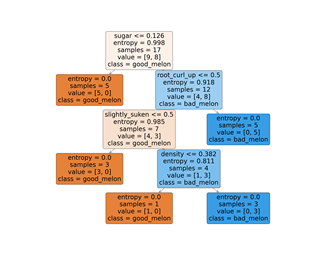

想要达成

这样的下面有显示类名的效果

Answer 1

y = data[data.columns[15:17]]
似乎你的label的2个类别是用one-hot展开为2列的，用decision tree你放到一列里就可以。

你可以试试用下面的函数转到一列中，再fit

# conver one-hot to label
def one_hot_to_label(y):
    y_label = np.zeros(y.shape[0])
    for i in range(y.shape[0]):
        y_label[i] = np.argmax(y[i])
    return y_label

y = one_hot_to_label(y)
